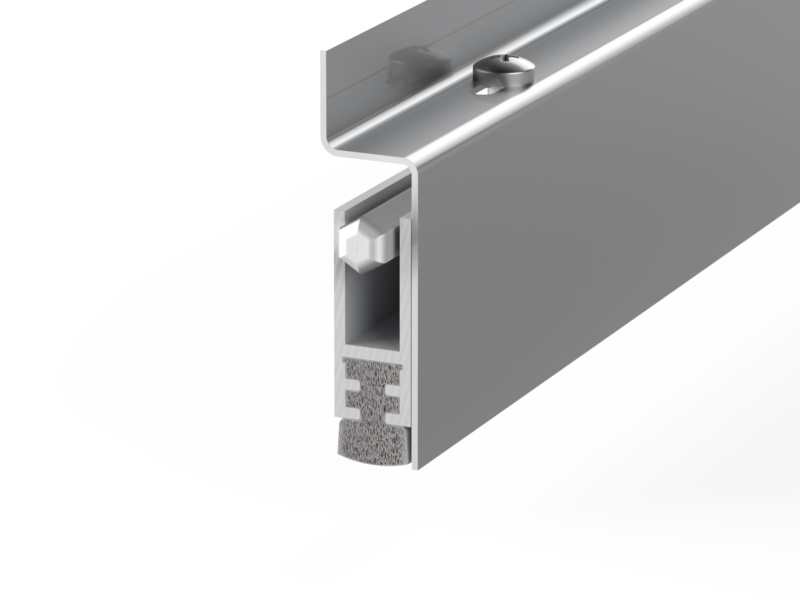

LAS8070 Drop Seal
Face-fixed
A grade 304 stainless steel heavy duty automatic drop seal. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Impervious to most chemicals, solvents, cleaning fluids + disinfectants.
Finish
System specification
| Property | |
|---|---|
| LOCATION | Single swing, single + double leaf doors. For use on both right + left handed doors |
| MIN/MAX GAP SIZES | 1mm/25mm |
| SEAL MATERIAL | Foamed silicone rubber |
| FINISHES | Brushed stainless steel with grey silicone rubber insert |
| STANDARD LENGTHS | 610mm, 710mm, 815mm, 915mm, 1015mm, 1120mm + 1220mm. Note: 610mm and 710mm length can be cut back by 80mm. All other lengths can be cut back by 100mm |
| ADJUSTMENT | Self-levelling on uneven surfaces. Adjustment can be carried out independently of fixing screws |
