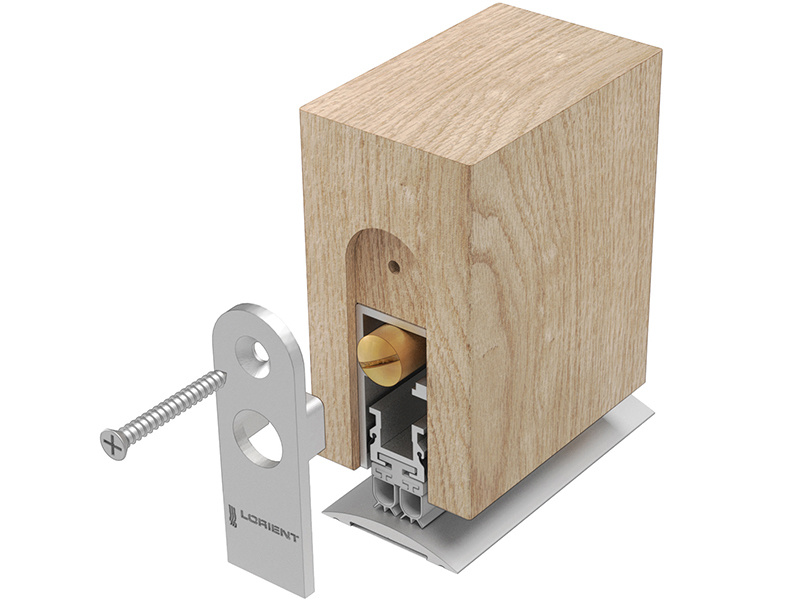

LAS8013 si Drop Seal

Mortised

A heavy duty, automatic drop seal designed for optimum performance. It requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws. Supplied with standard nylon end caps. Die cast end plates in a metallic finish for premium aesthetics are an option.

Finish

System specification

Property
LOCATIONSingle swing, single + double leaf doors. For use on both right + left handed doors
MIN/MAX GAP SIZES1mm/15mm
SEAL MATERIALBlack or grey silicone rubber
FINISHESSilver anodised aluminium, grey silicone rubber gasket. Silver anodised aluminium, black silicone rubber gasket. Die cast end plates in square + radiused versions are available in a metallic finish
STANDARD LENGTHS 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 275mm
ADJUSTMENTSelf-levelling on uneven surfaces - can be adjusted independently of the fixing screws
TEST EVIDENCEAcoustic: BS EN ISO 10140-1: 2010+A2: 2014 (Annex J) up to Rw 43dB
PERFORMANCEMeets smoke requirement: BS 9999: 2017
ACCREDITATION
ULR27972
