SYSTEM-36 PLUS Glazing Seal

U-Shaped Gaskets

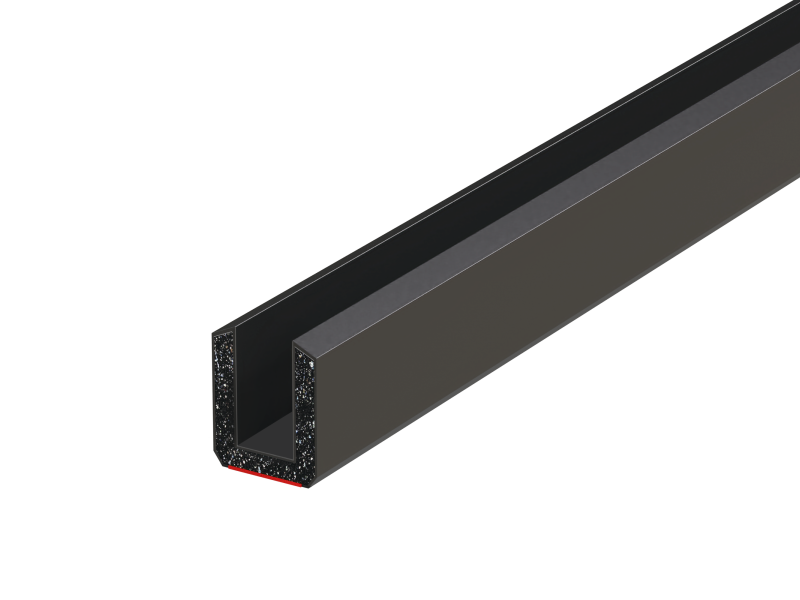

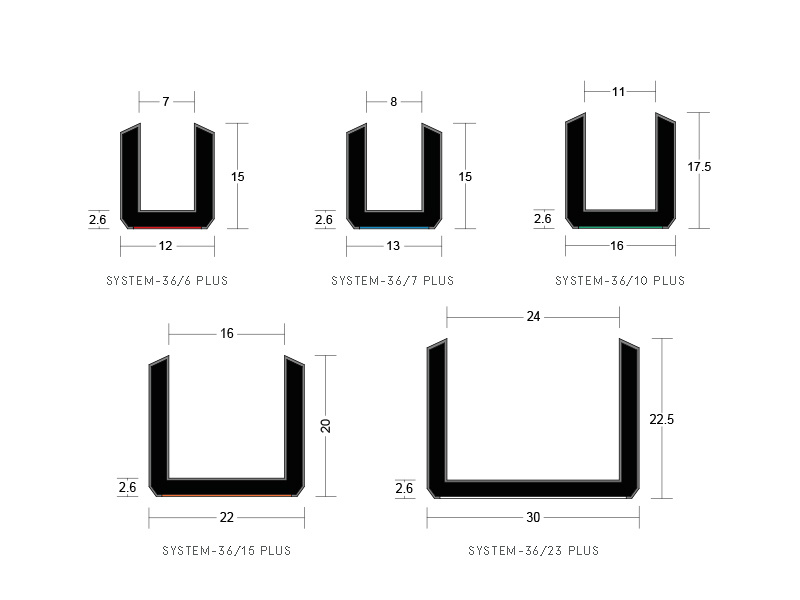

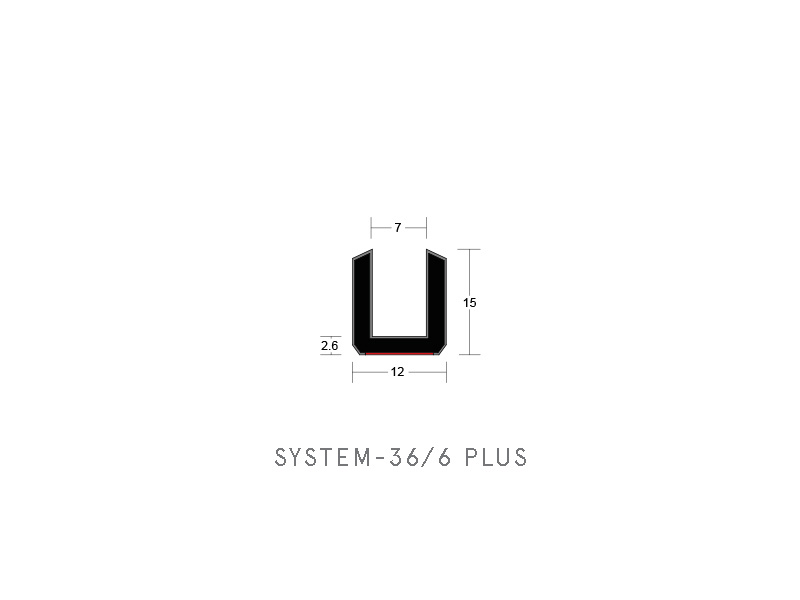

  • System-36/6

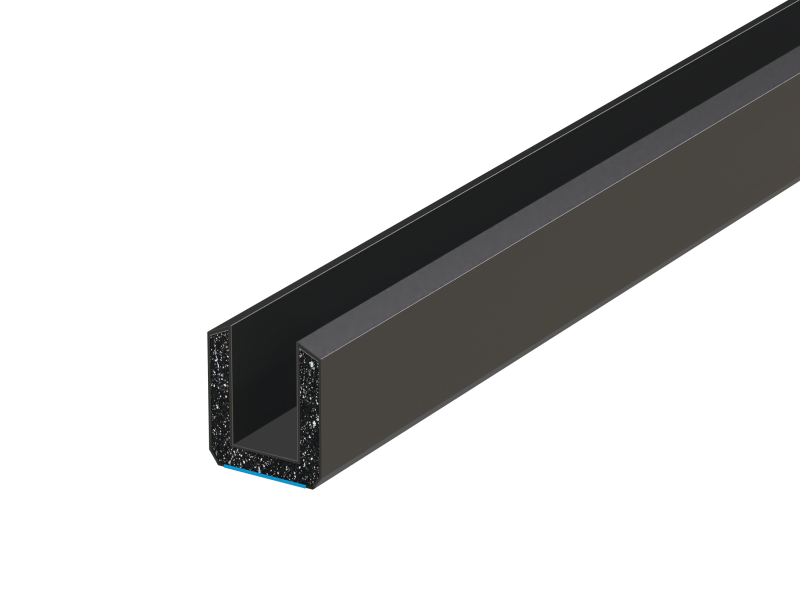

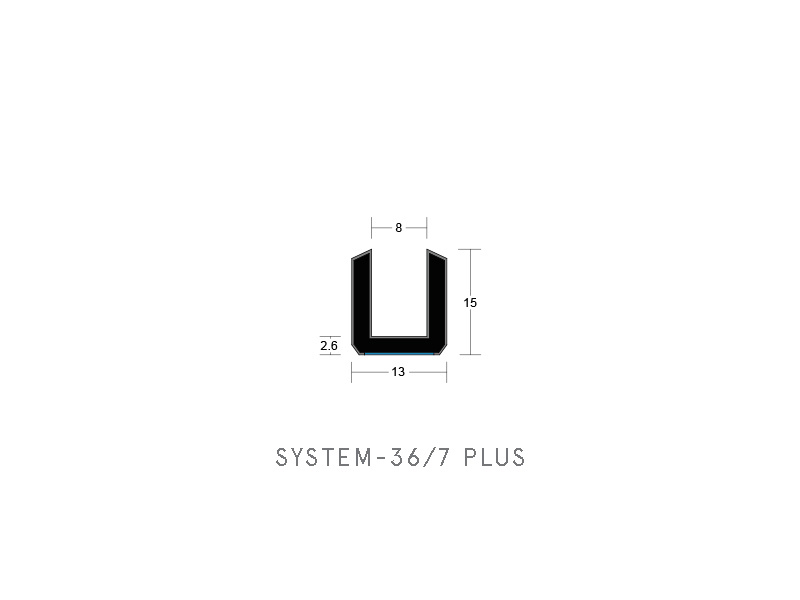

  • System-36/7

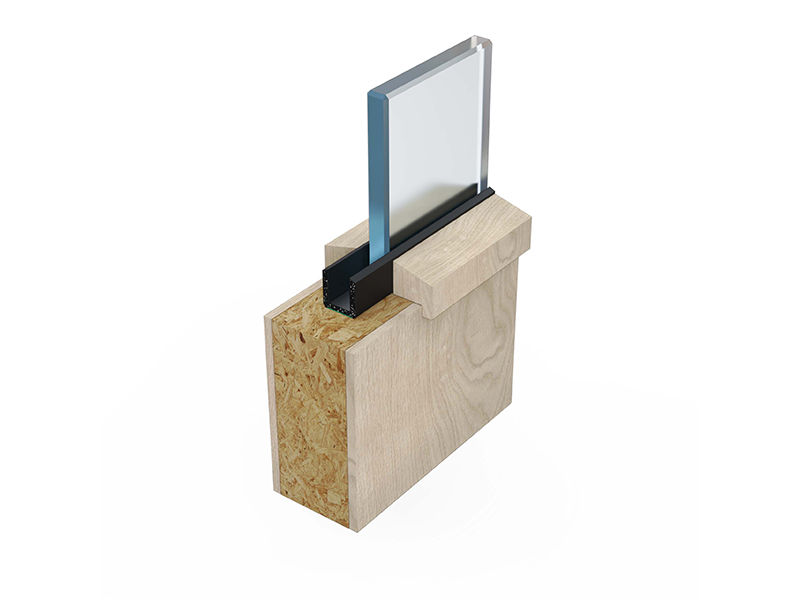

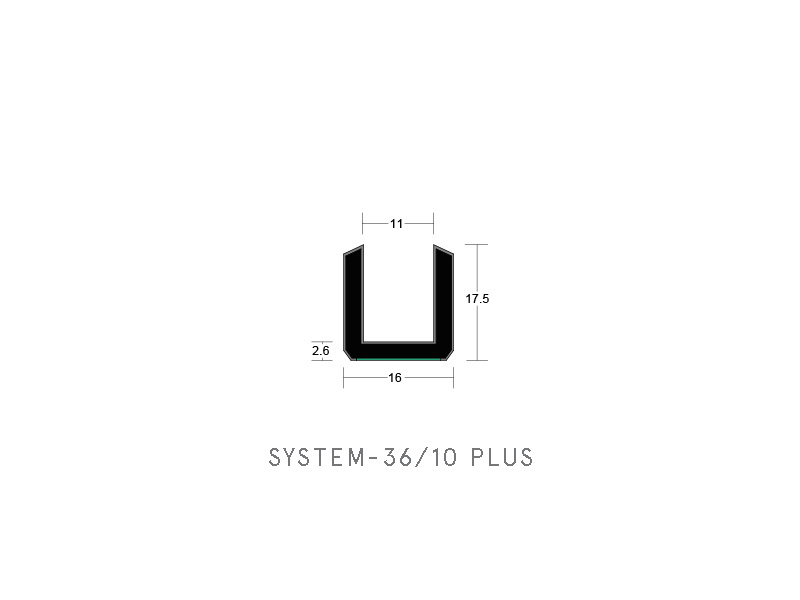

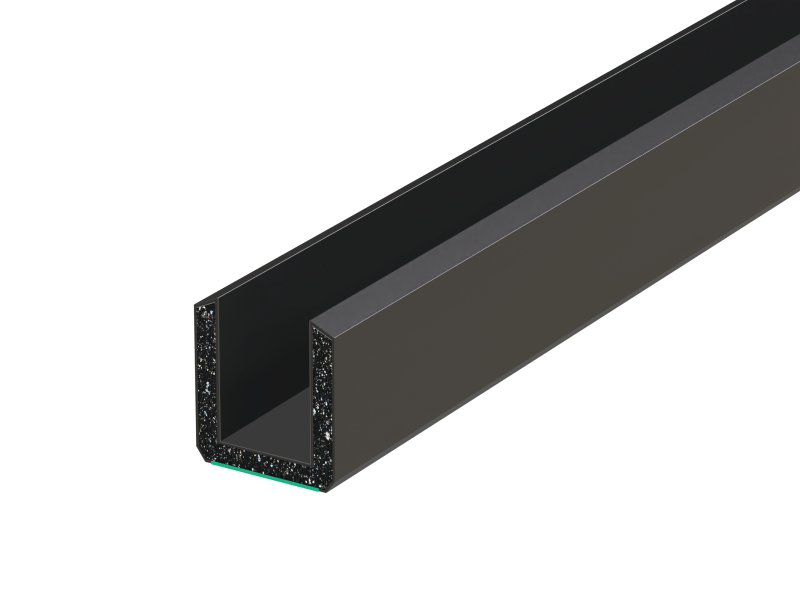

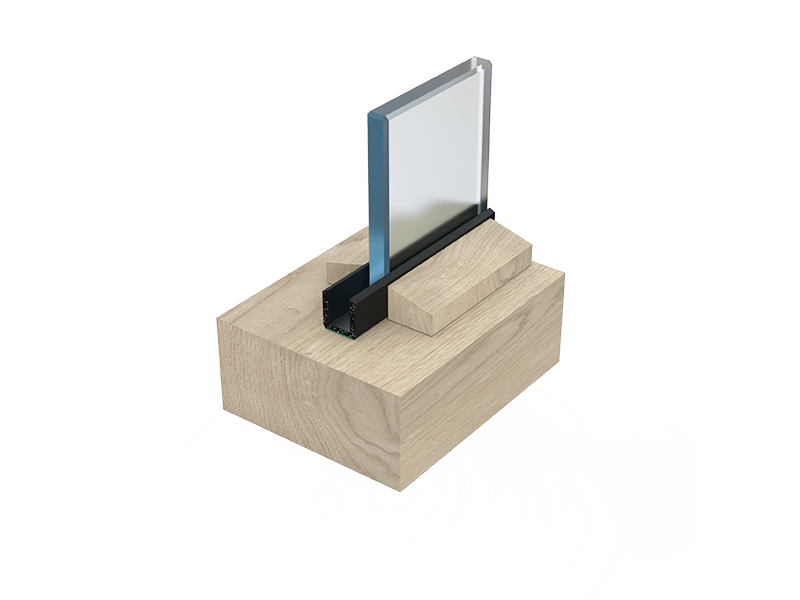

  • System-36/10

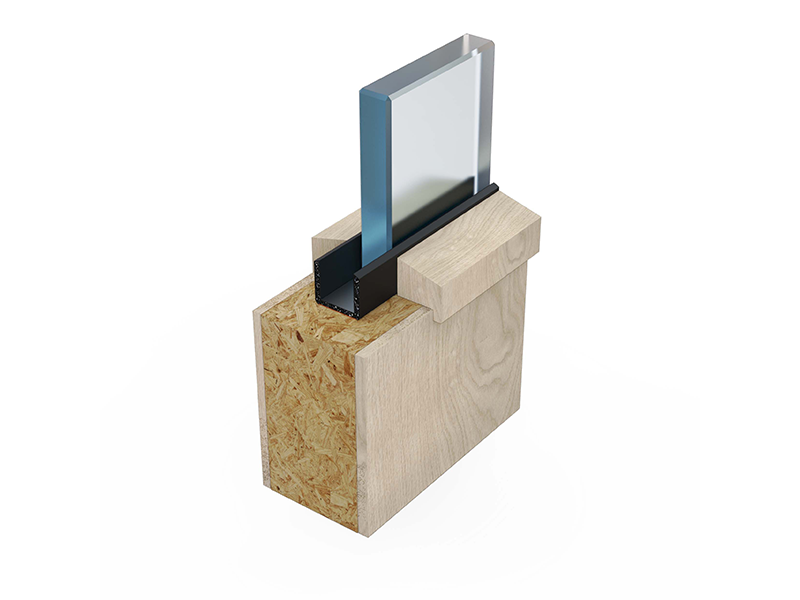

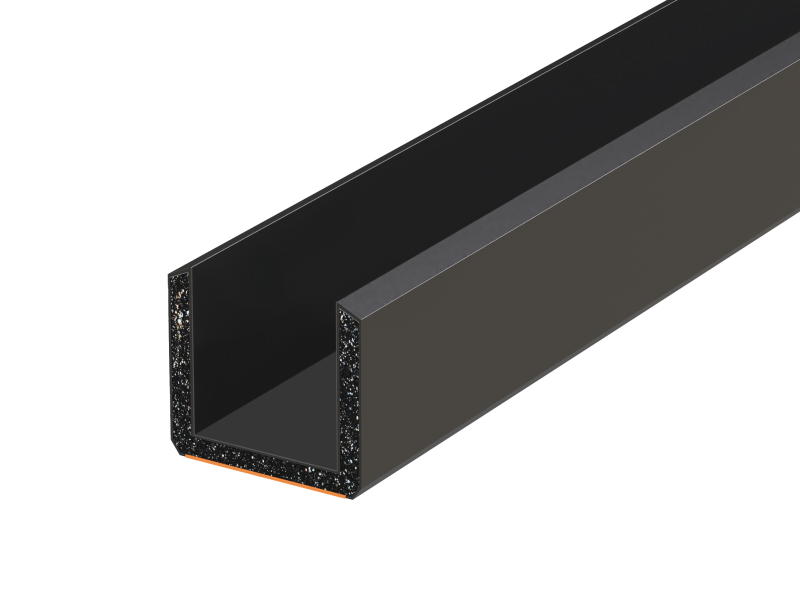

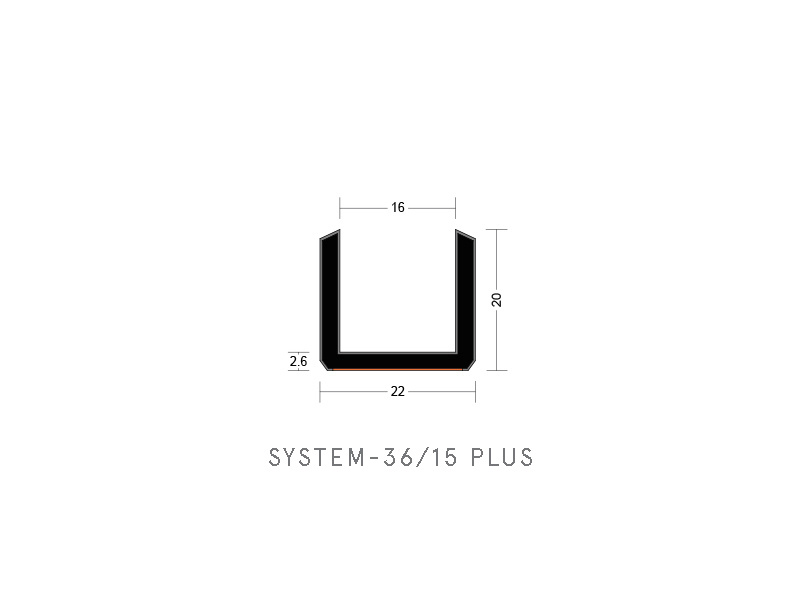

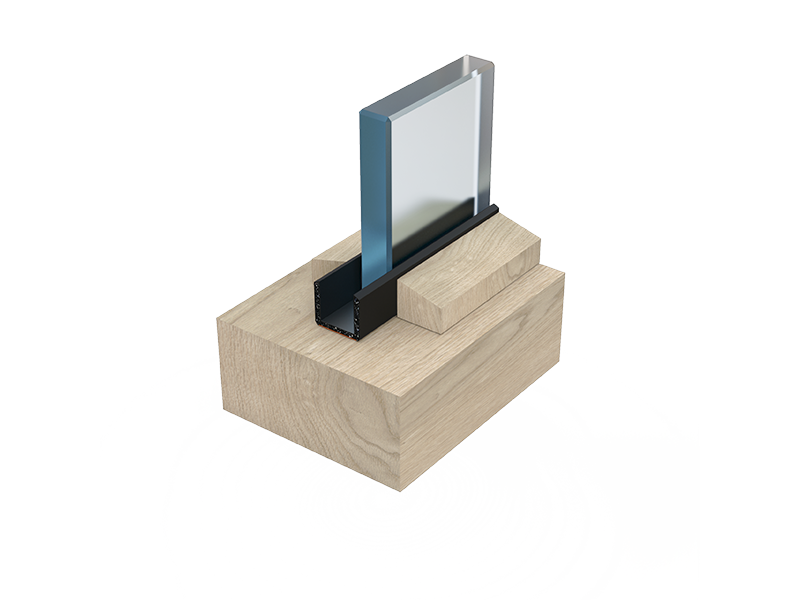

  • System-36/15

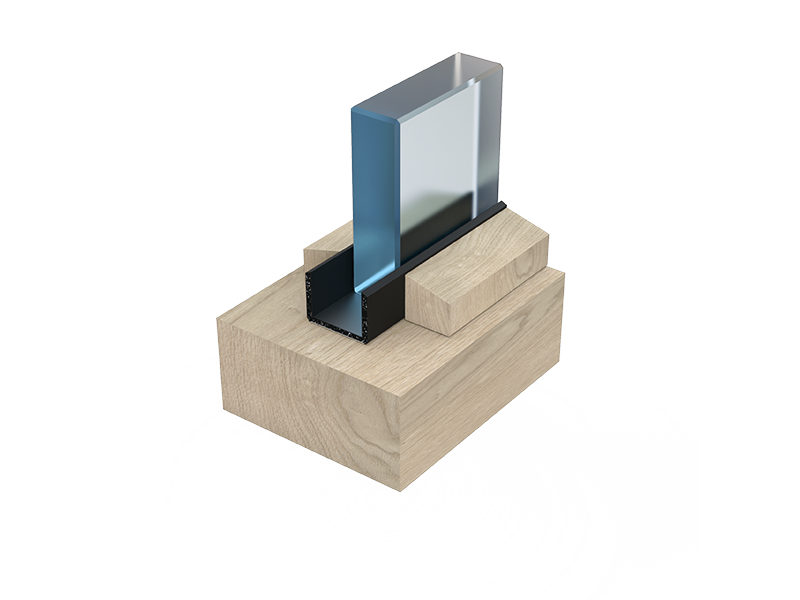

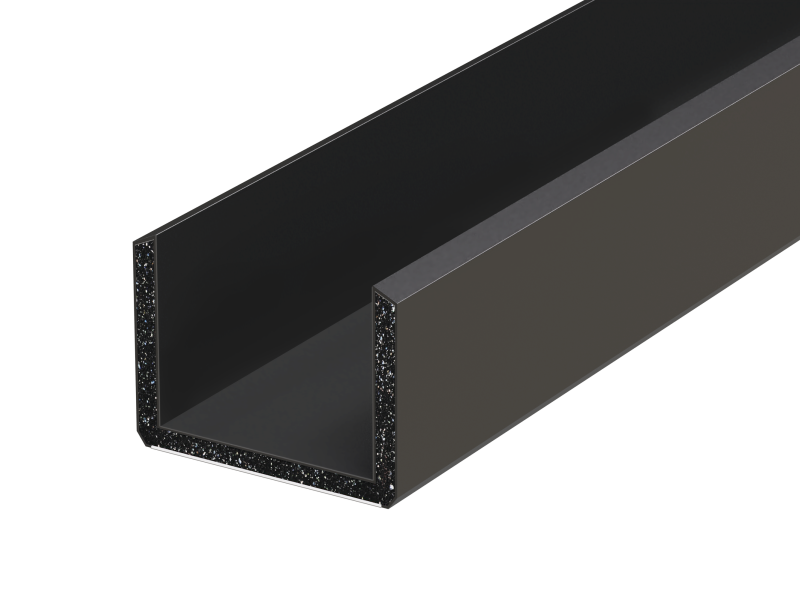

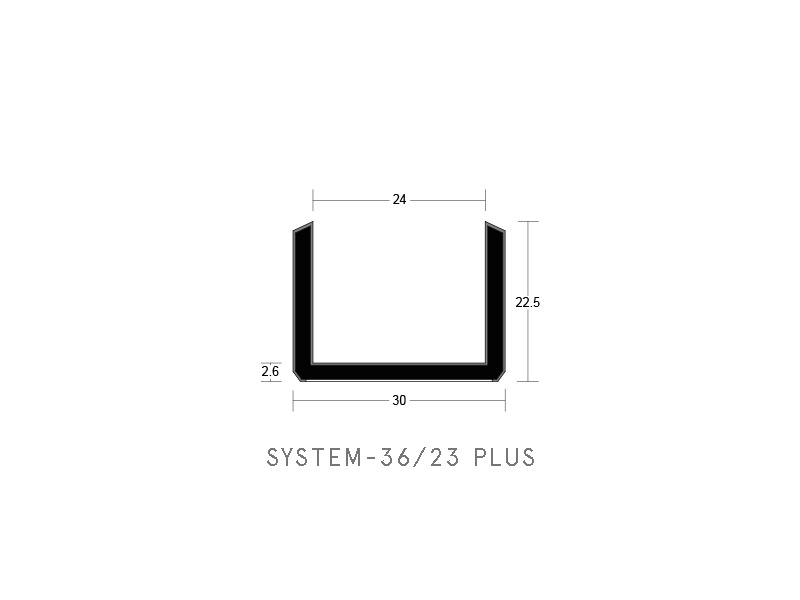

  • System-36/23

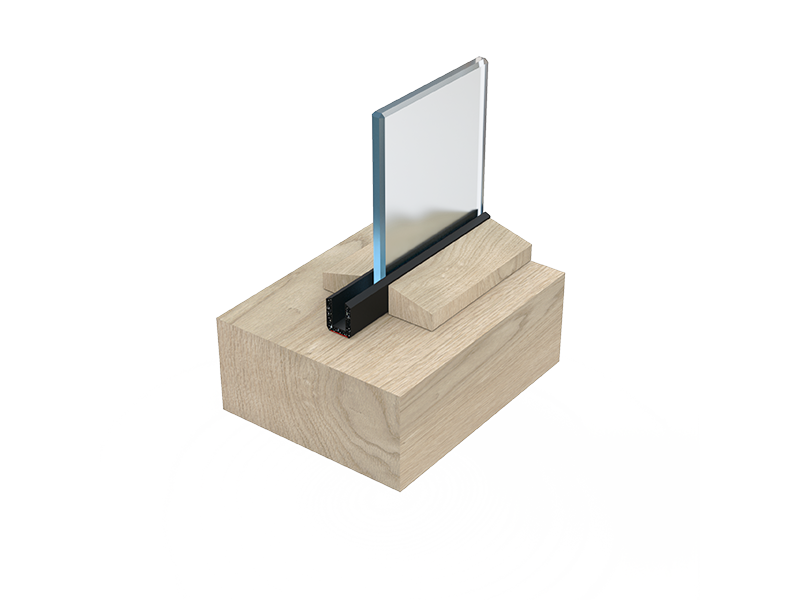

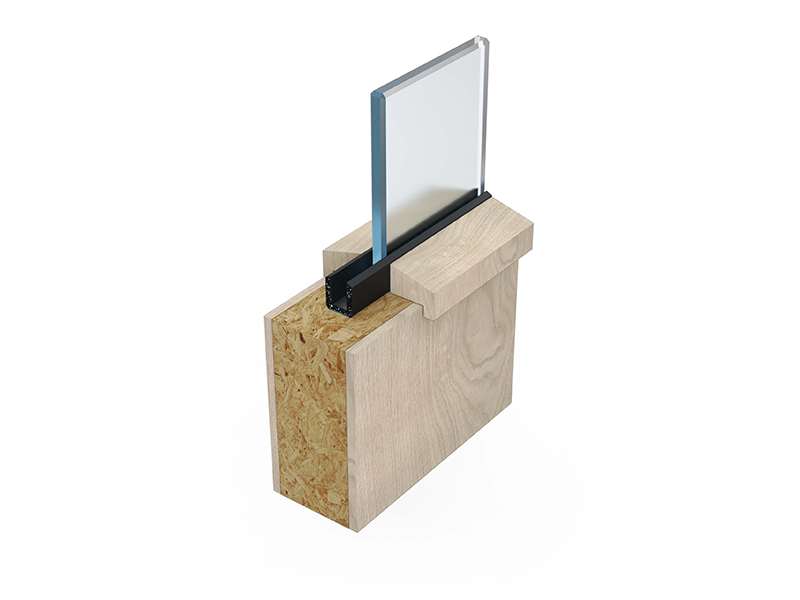

Lorient’s System-36 PLUS is a flexible family of U-shaped intumescent gaskets designed for 30 minute fire resistant doors + screens. When using approved glass types it provides 60 minute fire resistance for doors + screens.

View the System-36 PLUS glazing seal animation.

  • Request sample
Colour

System specification

PropertySystem-36/6 PLUS System-36/7 PLUSSystem-36/10 PLUSSystem-36/15 PLUSSystem-36/23 PLUS
Application Doors + screens. FD30 fire doors Doors + screens. FD30 fire doorsDoors + screens. FD30 fire doorsDoors + screens. FD30 + FD60 fire doorsSystem for screens only
Seal material Intumescent graphiteIntumescent graphiteIntumescent graphiteIntumescent graphiteIntumescent graphite
Glass thickness6mm - 7mm7mm - 8mm9mm - 11mm14mm - 16mm23mm
Standard lengths 60m coils 60m coils 30m coils 30m coils 25m coils
TEST EVIDENCEFire: BS EN 1634-1: 2014 & BS 476-22: 1987Fire: BS EN 1634-1: 2014 & BS 476-22: 1987Fire: BS EN 1634-1: 2014 & BS 476-22: 1987Fire: BS EN 1634-1: 2014 & BS 476-22: 1987Fire: BS EN 1634-1: 2014 & BS 476-22: 1987
ACCREDITATION
Certifire CF5060CF5060CF5060CF5060CF5060
