Aluminium cover grilles

Cover grilles

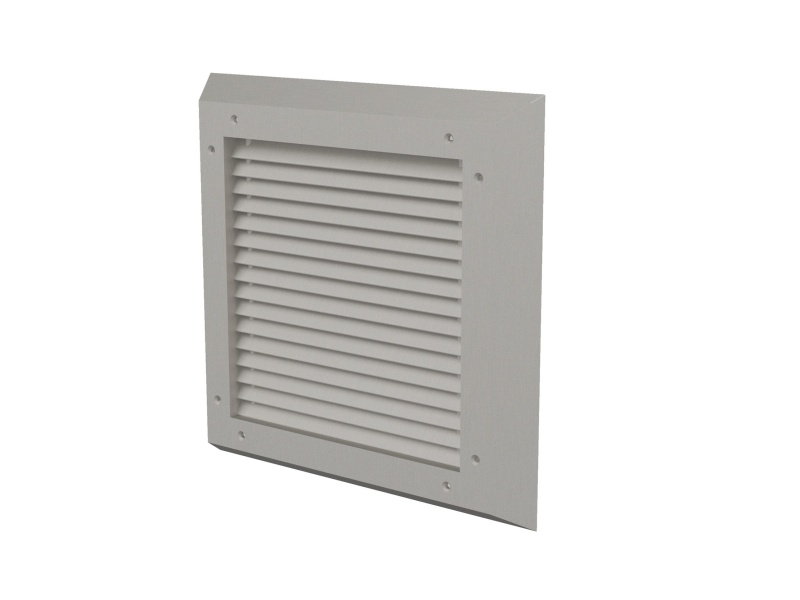

Lorient Vision proof flanged grille suitable for surface mounting onto doors, wall or partitions. Especially useful for narrow doors or fireblock installations. The aluminium ‘V’ shape chevron blade mounted on a close 8mm pitch renders see through vision impossible.

System specification

Property
Construction Manufactured from extruded aluminium. Vanes are horizontal and allow bi-directional airflow
SizeCover Grilles can be supplied in a wide range of sizes to suit the intumescent dampers. Sizes from 100 x 100mm up to 1200 x 1200mm in either configuration offer great flexibility when selecting grille sizes. Each cover grille is manufactured to the nominal aperture size + 80mm
Material Aluminium
Application Suitable for walls, doors or partitions. Weather louvre options available for external applications. Note: Not recommended for external wall applications or high levels of moisture. Please refer to weather louvres which can be supplied as alternatives
Finish Standard powder coat finishes are white and silver. Other colours to suit customer requirements are available. Also available as an ‘oil’ finish for customer painting. (Non-standard - charges and lead times apply)
Use with LVV40, LVH44 + LVH20S
