Drop seals for uneven floors
Planet, a trusted brand within ASSA ABLOY, has been at the forefront of drop seal innovation for over 70 years. Recognised for precision engineering, sustainability, and product versatility, Planet continues to deliver high-performance sealing solutions for a wide range of door types and challenging environments.
In real-world installations, floor surfaces aren’t always perfectly level – and that can compromise the performance of a standard drop seal. Planet drop seals offer a straightforward solution: the bevel lip.

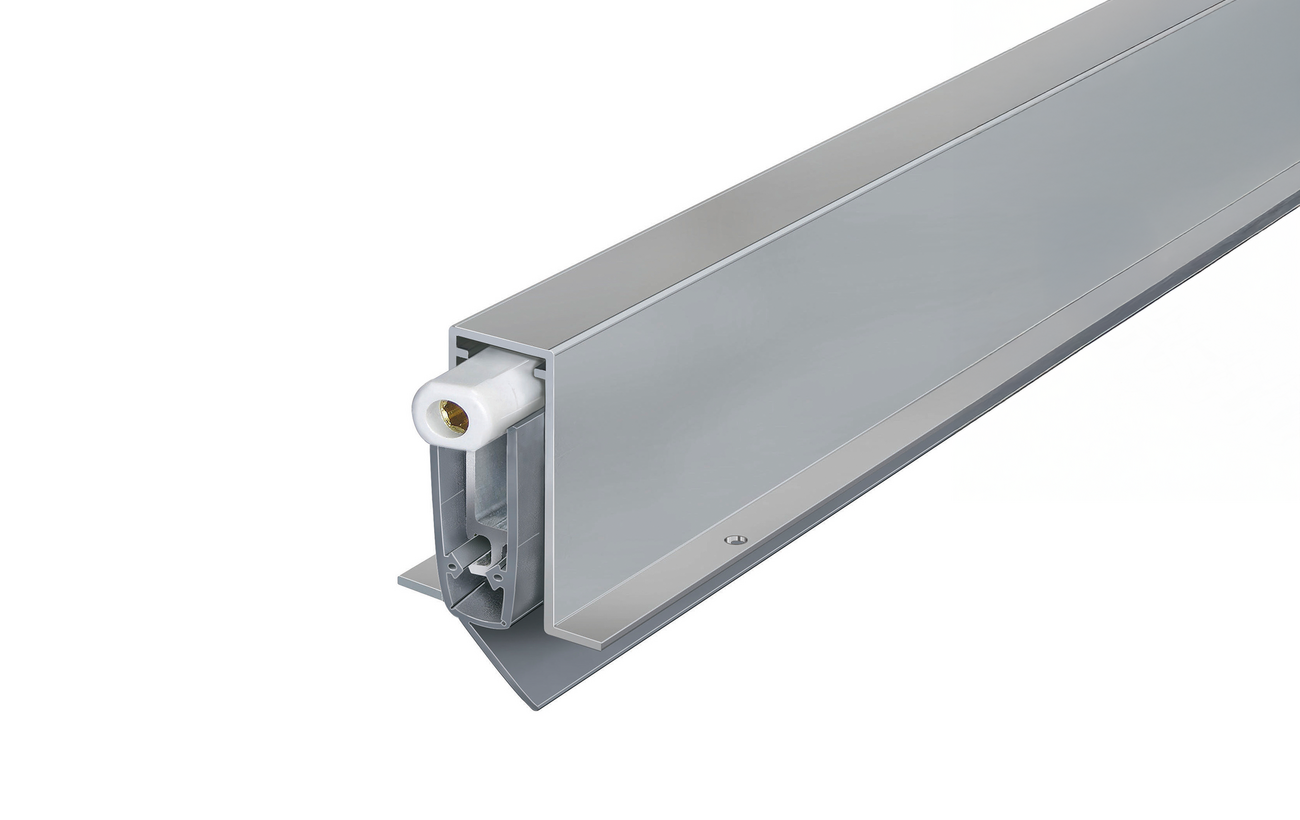

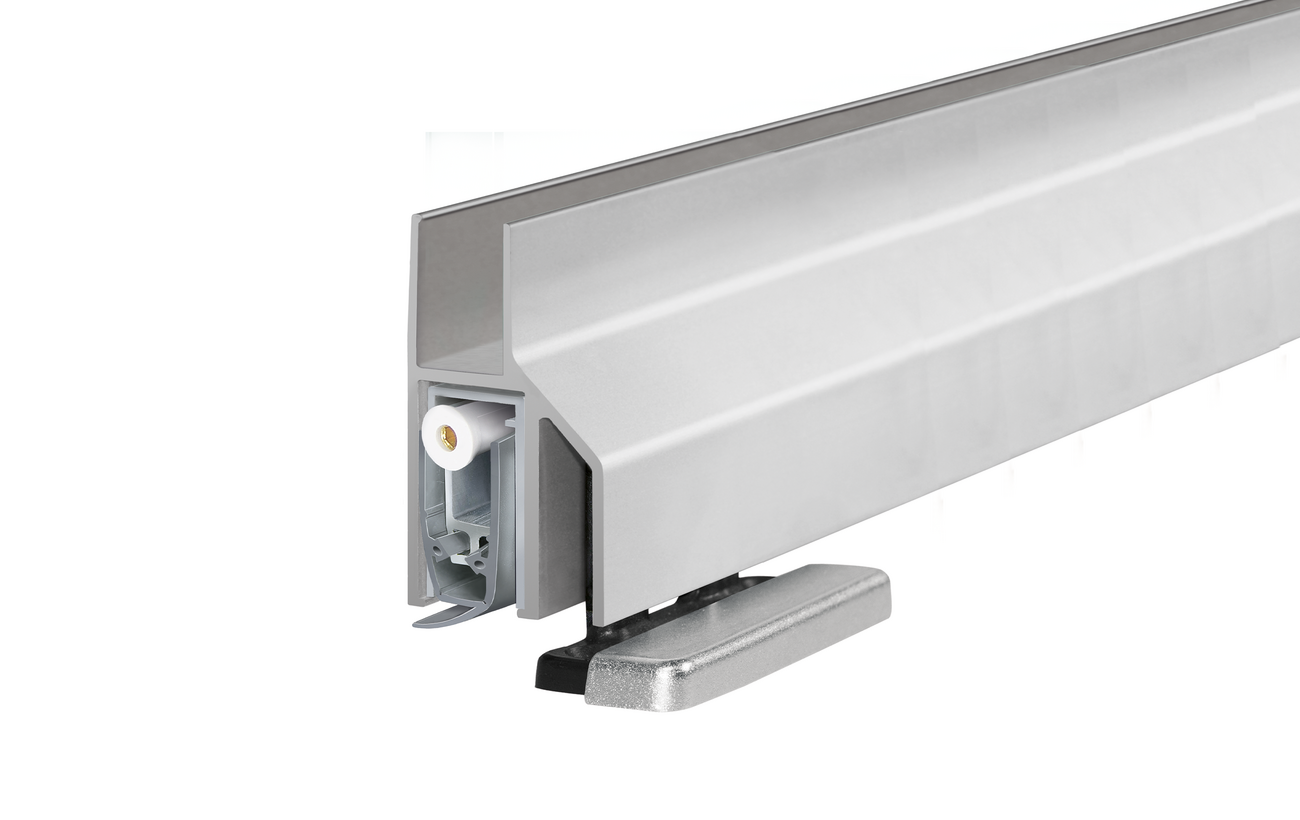

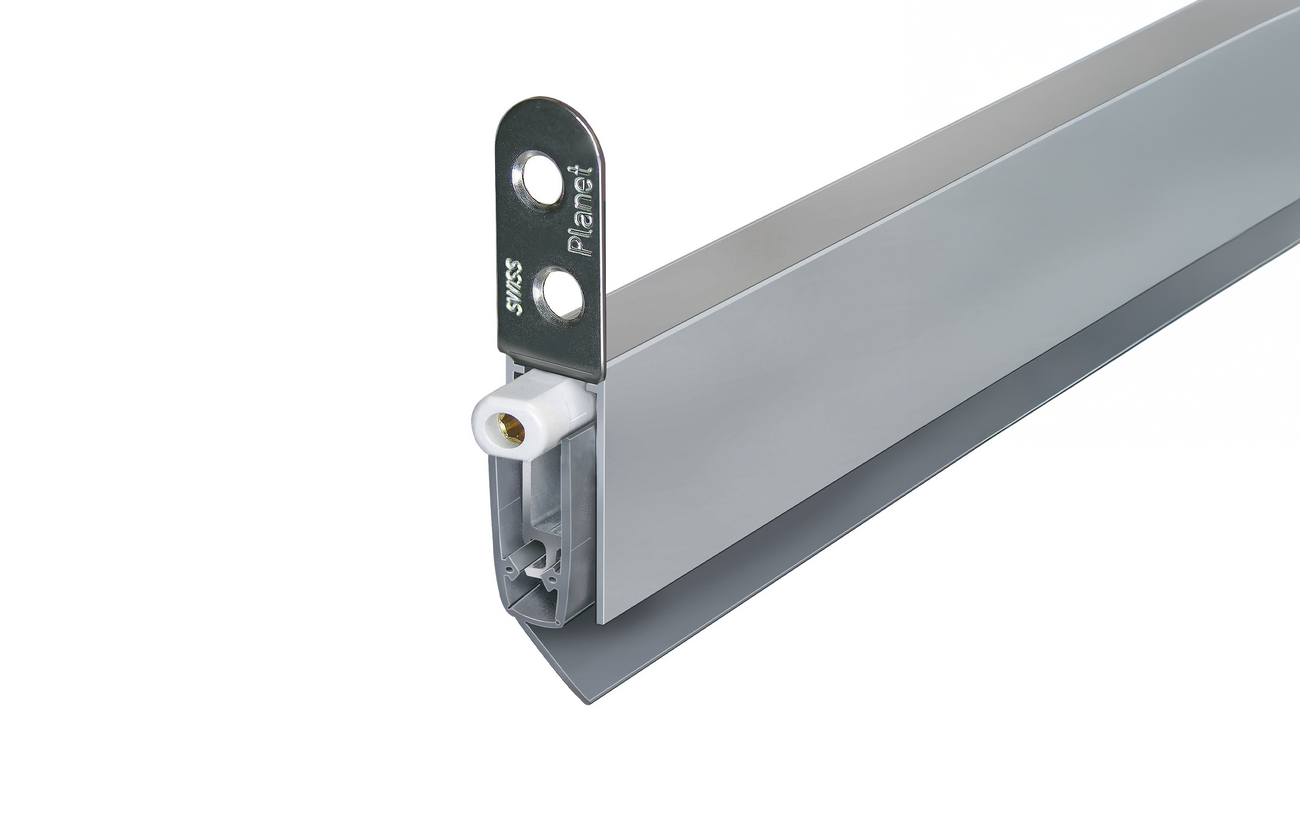

Some models, such as the Planet RH and Planet RF, come with a bevel lip as standard. But for many other Planet seals, a bevel lip can be specified as an alternative to the standard gasket – helping the seal make reliable contact on sloping or uneven floors.
This optional component improves performance without requiring any on-site modifications or adjustments.
Choosing the right seal for different floor types
Not all uneven floors are the same – and Planet drop seals offer specific solutions depending on the condition:

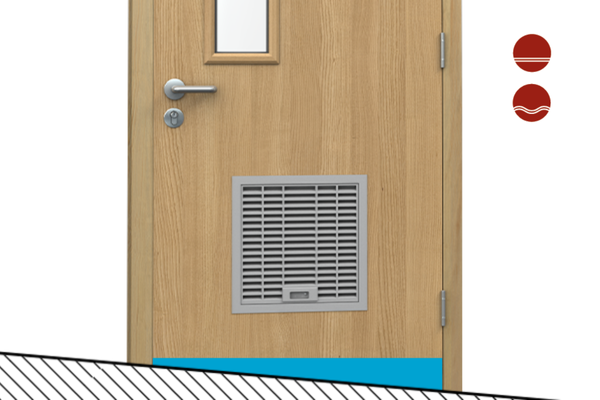

Sloping floors:
All Planet drop seals with a standard gasket or optional bevel lip provide effective sealing on gently angled surfaces.

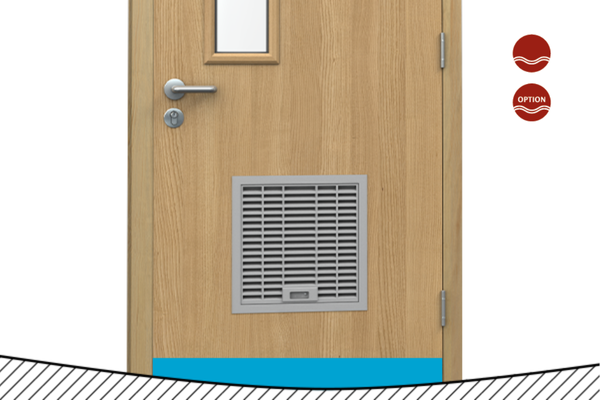

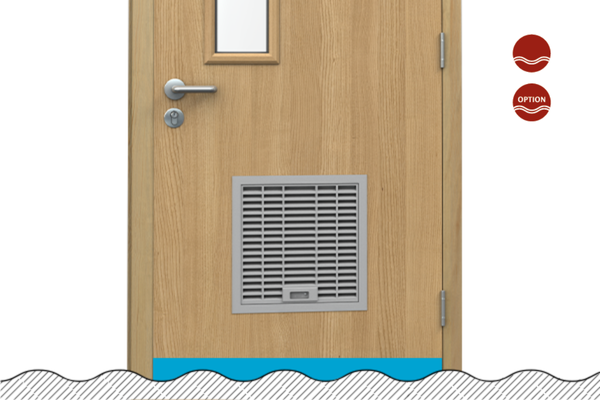

Concave or convex floors (e.g. domed, dished, or uneven in profile):
Use Planet RH or RF, or choose any compatible Planet seal with the optional bevel lip fitted.
These options help ensure a continuous seal even where floor level varies across the threshold – providing containment for acoustic, smoke, air, and light transmission.
Specifying the Right Bevel Lip
To specify a bevel lip, simply include one of the following order codes at the time of order – the seal will be supplied pre-configured with the bevel lip installed:
| Order Code | Profile width | Handing |
| PLA900893L | 8mm | right-handed |
| PLA900893R | 8mm | left-handed |
| PLA900894L | 13mm | right-handed |
| PLA900894R | 13mm | left-handed |
| PLA900895L | 20mm | right-handed |
| PLA900895R | 20mm | left-handed |
🛈 Tip: Check the 'Option for uneven floors' icon on datasheets, or product pages to confirm compatibility with your chosen Planet model.
Adding a bevel lip allows for improved contact, smoother operation, and consistent sealing performance – even when floor levels vary. It’s a small change with a big impact.
For advice or to place an order: sales@lorientuk.com | 01626 834252
