Sealing Solutions for Pivot Doors

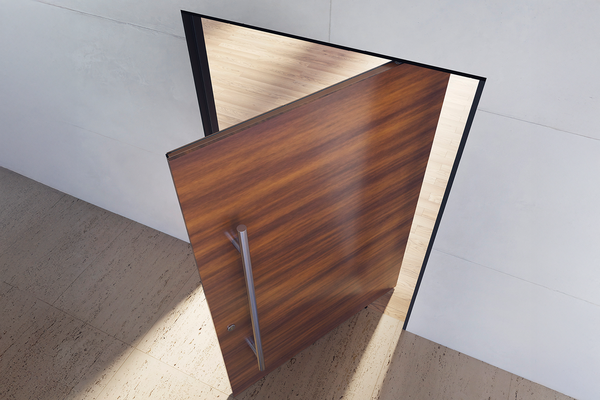

Sealing pivot doors at the threshold presents unique challenges. Unlike traditional hinged doors, pivot doors rotate on a central or offset pivot point, which can create larger or uneven gaps at the top and bottom. With narrow door leaves and sleek, modern designs, these doors need discreet, effective sealing solutions that don’t compromise aesthetics.
Introducing the Planet US Pivot Module Set - a complete sealing solution for rebated pivot doors.
At just 8mm wide, the ultra-slim Planet US drop seal is ideal for narrow, minimal-profile pivot door leaves. Designed for installation in both the top and bottom of the door, it provides an unobtrusive yet highly effective barrier against sound, smoke, draughts, and light.
Smart Engineering for Smooth Operation

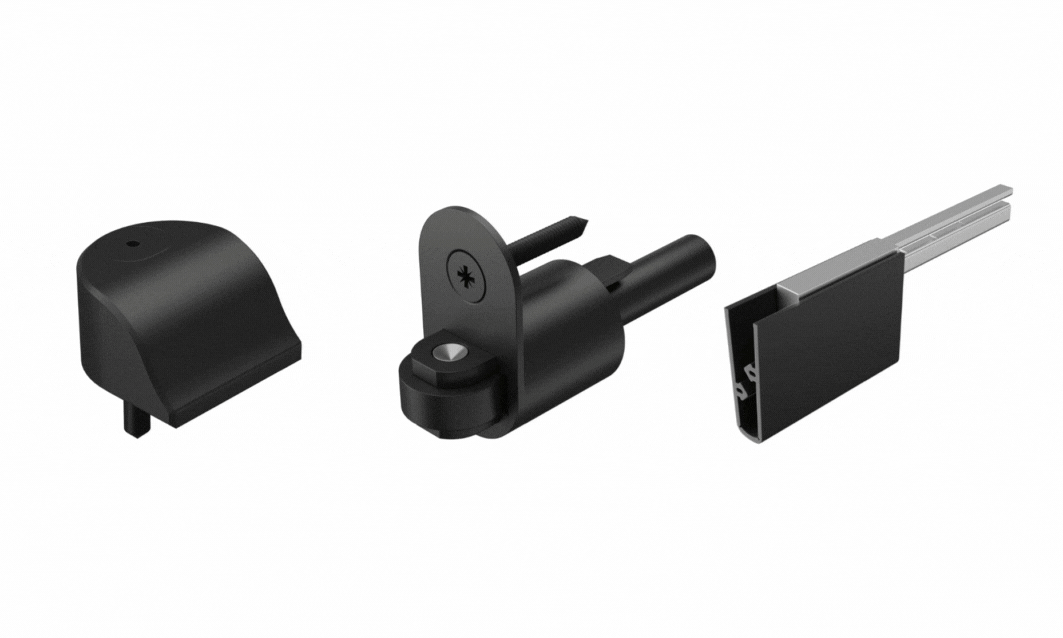

Pivot doors experience significant mechanical forces due to their central or offset hinge position. To overcome this, the pivot module set, which consists of a roller and pivot ram, reduces the force required to activate the seal while improving door-closing dynamics.
As the door closes:

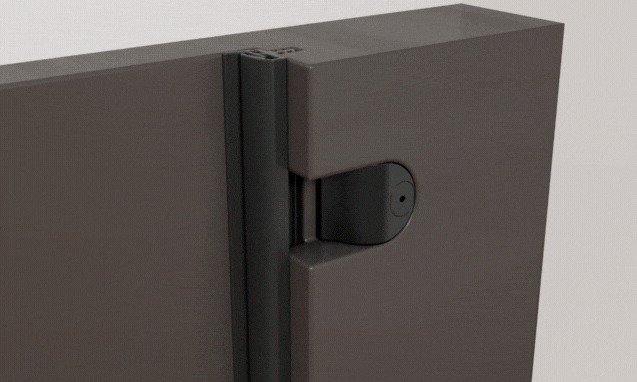

- The roller mechanism glides into the pivot ramp (mitred neatly into the frame on the lock side of the door), guiding the door gently into position.
- The top seal retracts, and the bottom seal drops, creating a full, reliable seal along the entire width of the head and threshold of the door.
- The drop seal can also be installed on just the threshold of the door, depending on requirements.
This design compensates for sloping floors, offering high-efficiency sealing with silent, low-resistance operation, even across gaps of up to 20mm.
Stylish and Functional
The exposed roller module is available in stainless steel or a sleek black finish, offering flexibility to match contemporary door hardware styles.
Features & benefits
- Ultra-slim 8mm profile
- Effective top and bottom sealing for pivot doors, with a silent, low-resistance release
- Smoke, sound, draught, and light containment
- Smooth operation with low activation force
- Self levelling on sloping floors
- Seals threshold gaps of up to 20mm
- Stylish visible components in two finish options
Whether you’re designing premium residential entrances or high-performance commercial doors, the Planet US drop seal with Pivot Module is the discreet, reliable solution to achieve top and door bottom sealing on pivot doors.
Watch the video below to see this unique drop seal for pivot doors solution in action.
We also offer specialist drop seals designed for exterior, sliding, and glass doors - combining performance with peace of mind across a wide variety of applications. See the full range here.
