LAS8002G Glass Door Drop Seal

face-fixed

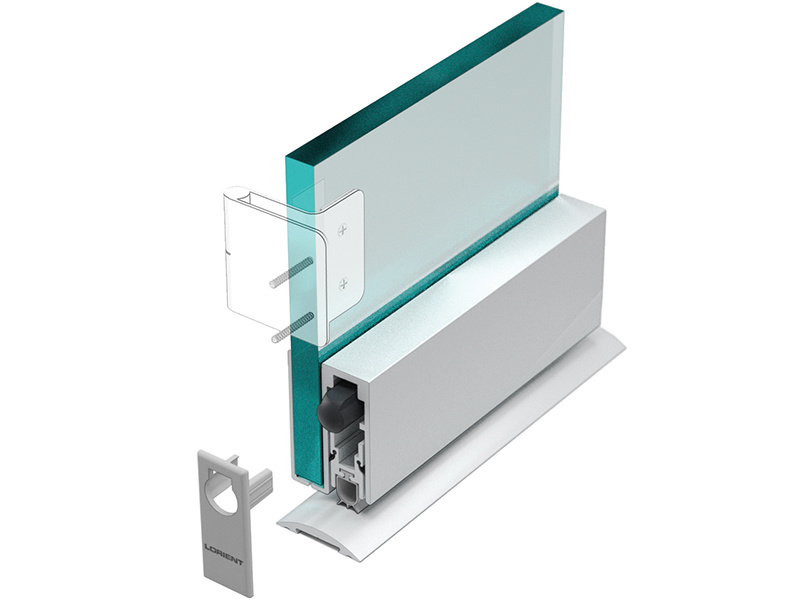

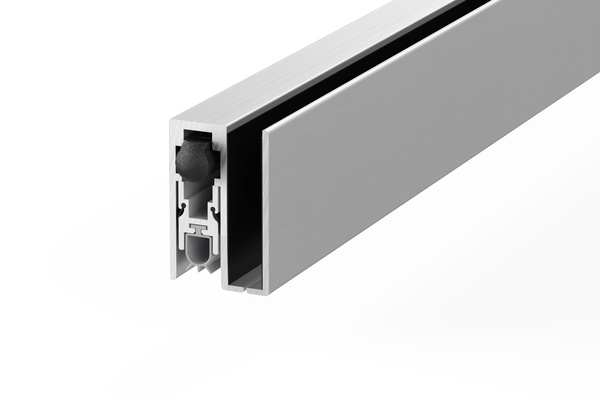

A slimline, face-fixed drop seal suitable for glass doors - hinged into timber or aluminium frames. A smooth back plate creates a visual aesthetic. LAS8002G si features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.

Finish

System specification

Property

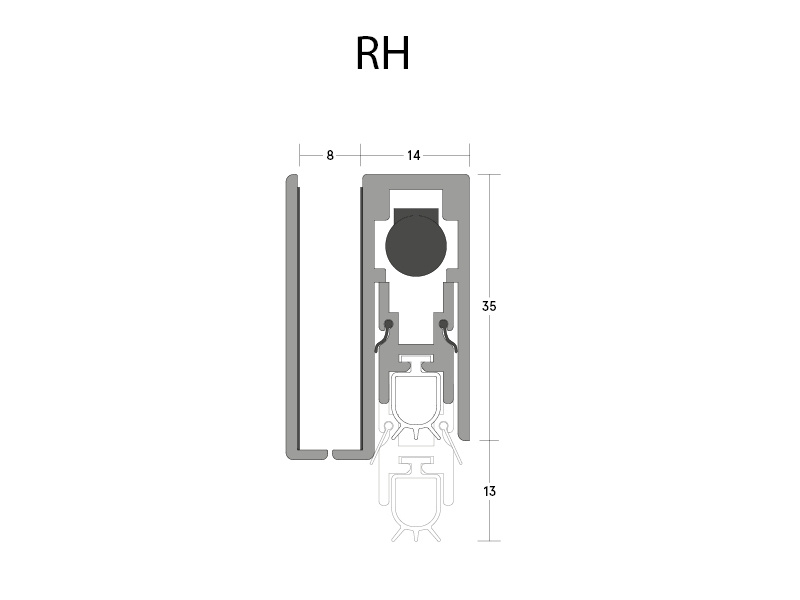

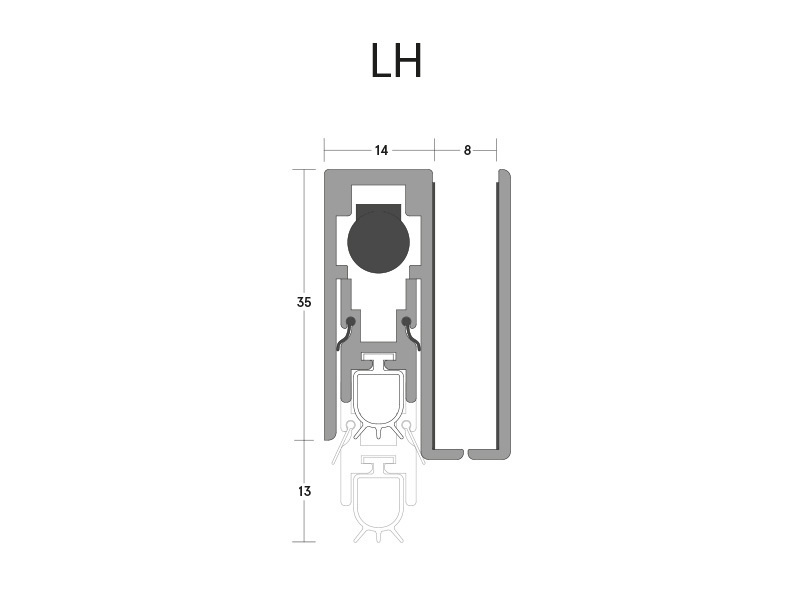

LOCATIONSingle swing doors. For use on both right + left handed doors
MIN/MAX GAP SIZES1mm/10mm
SEAL MATERIALGrey silicone rubber
FINISHESSilver anodised aluminium with grey end caps + grey silicone rubber gasket. Bronze anodised aluminium with black end caps + black silicone rubber gasket. Black + light bronze anodised aluminium (non-standard - charges and lead times apply). Other powder-coated colour finishes (non-standard - charges and lead times apply)
STANDARD LENGTHS335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm.
ADJUSTMENTSelf-levelling on uneven surfaces. Can be adjusted independently of the fixing screws
TEST EVIDENCEDurability: 1 million cycles
