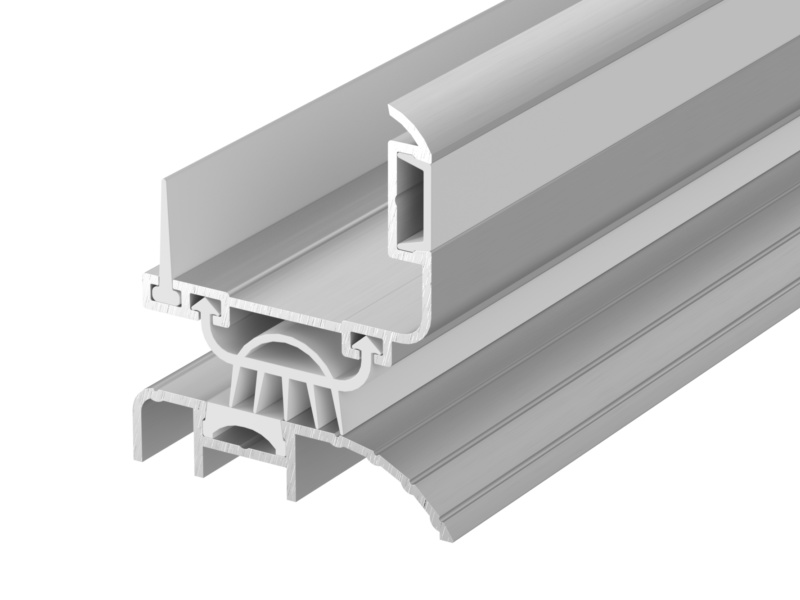

LAS3008 si Door Bottom Seal
Medium Duty
A multi-blade, storm-proof seal combination consisting of the LAS3007 si door bottom seal + LAS4015 threshold plate. Durable, anodised aesthetic finish. It can be fitted without removing the door. Concealed fixings, pre-drilled + slotted holes on LAS3007 si for easy adjustment.
Finish
![](/imager/productimages/Supporting-images/Isometrics/1107/LAS3008-isometric_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/1119/3008_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Isometrics/1107/LAS3008-isometric_905a32f077cde75e59ae4f0bd185c8e7.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/1119/3008_905a32f077cde75e59ae4f0bd185c8e7.jpg)
System specification
Property | LAS3007 | LAS4015 |
---|---|---|
LOCATION | Single swing doors | Single swing doors |
MIN/MAX GAP SIZES | 22mm/24mm | 22mm/24mm |
SEAL MATERIAL | Flexible silicone rubber | Aluminium with PVC cover strip |
Standard finish | Silver anodised aluminium with grey cover strip and grey silicone rubber blade | Silver anodised aluminium with grey cover strip and grey silicone rubber blade |
Non-standard finish | Bronze anodised aluminium with black cover strip and black silicone rubber blade are subject to non-standard charges and additional lead times | Bronze anodised aluminium with black cover strip and black silicone rubber blade are subject to non-standard charges and additional lead times |
STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order | 1m + 2.1m. Other lengths to special order |
