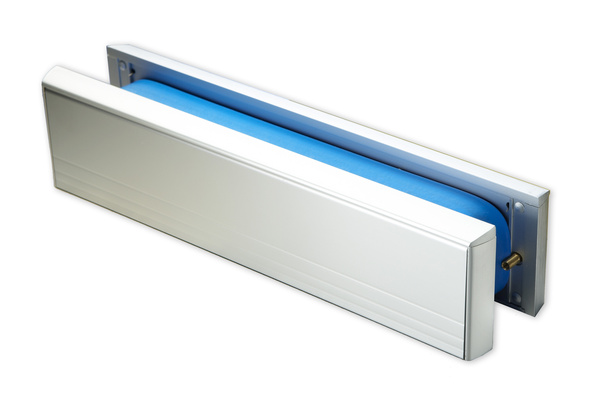

Firemaster Letterplate

Fire + smoke resistant

The Firemaster Letterplate provides in excess of 30 minutes fire resistance + protection against cold smoke in line with BS 9999. It features a telescopic intumescent liner, making it suitable for a range of door thicknesses. A robust aluminium construction + nylon brush seals prevent vision through the letterplate, whilst also providing draught proofing.


System specification

Door Thickness 40mm min. 70mm max
SIZE 304mm x 70mm
SEAL MATERIAL Graphite intumescent liner
FINISHES Silver anodised, polished silver or polished gold
Test evidence Fire: BS 476-20/22: 1987
Performance BS 9999: 2008 + Approved Document B
Certifire CF219 (letterplate manufactured by YALE Ltd)
