FF1 30 Minute Glazing System
Bead Applied System

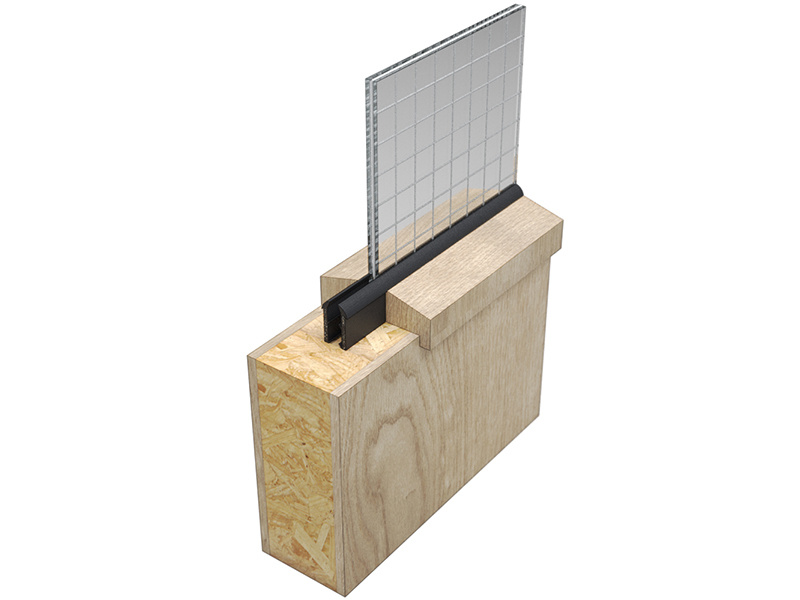

FF1 (Flexible Figure 1) is designed for use with glazed apertures in 30 minute fire resistant doors. Comprises a pair of bead applied intumescent strips. Featuring a unique design which enables tolerances between door, bead + glass thicknesses to be accommodated. Tested with many popular glass types.
![](/imager/productimages/181231/FF1-door_5472332afa344033d2bf9e7b6b9d883e.png)

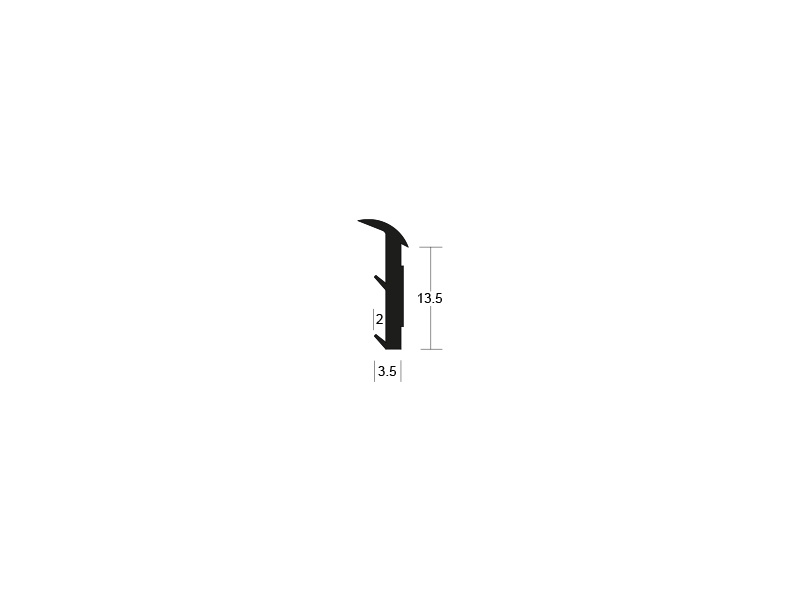

![](/imager/productimages/Supporting-images/Cross-sections/3610/FF1-cross-section_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/181231/FF1-door_905a32f077cde75e59ae4f0bd185c8e7.png)
![](/imager/productimages/Supporting-images/Cross-sections/3610/FF1-cross-section_905a32f077cde75e59ae4f0bd185c8e7.jpg)
System specification
Property | |
---|---|
Application | FD30 fire doors |
SEAL MATERIAL | Intumescent graphite |
Glass thickness | 5mm – 7.2mm |
Standard lengths | 50m coils. 5 coils per box |
MOQ | 1 box (250m) |
TEST EVIDENCE | Fire: BS 476-22: 1987 |
CERTIFICATION | |
Certifire | CF327 |
