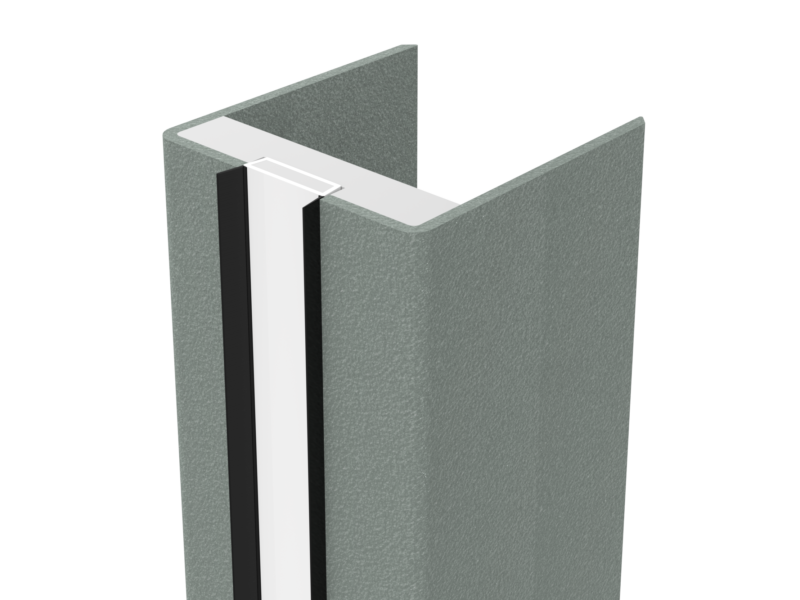

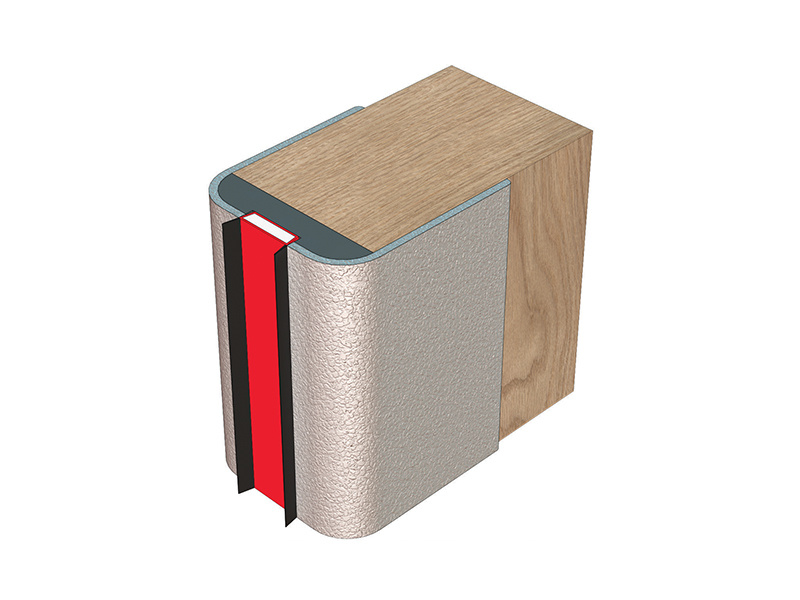

Door Edge Protector

Fire resistant

Some doors suffer severe damage to the leading edge due to heavy volumes of pedestrian + wheeled traffic. The Door Edge Protector incorporates the innovative DS seal. Together they offer superior combined protection against damage, fire, smoke, + sound. The seal also includes integral antimicrobial protection.


System specification

Door thicknessFD30: 44mm. FD60: 54mm
size32mm or 50mm
SEAL MATERIALSodium silicate
FINISHESHessian (textured) or Falmouth (smoother with light stippling). Available in a range of NCS colours with varying light reflective values (LRV)
TEST EVIDENCEFire: BS 476-22: 1987, BS 476-31.1: 1983. Integrity: 68 minutes.
PERFORMANCECan provide up to 30 or 60 minutes fire resistance. Protects against fire, smoke, sound and germs. Low frictional elastomeric fins of the DS seal enable ease of door operation – meeting the requirements of Approved Document M
