RJ008 Letterplate

Security + Fire Resistant Letterplate

Designed to meet the exacting security standards of TS 008:2015, the RJ008 letterplate is tested to withstand a series of physical tests based on the common methods of burglary. Providing up to 60 minutes fire resistance, this high-performance letterplate is available in a number of stylish finishes.


System specification

Door Thickness 44mm timber door. 54mm timber door
Size Internal: 300mm x 115mm x 35mm. External 227mm x 305mm x 77mm
Internal projection 40mm

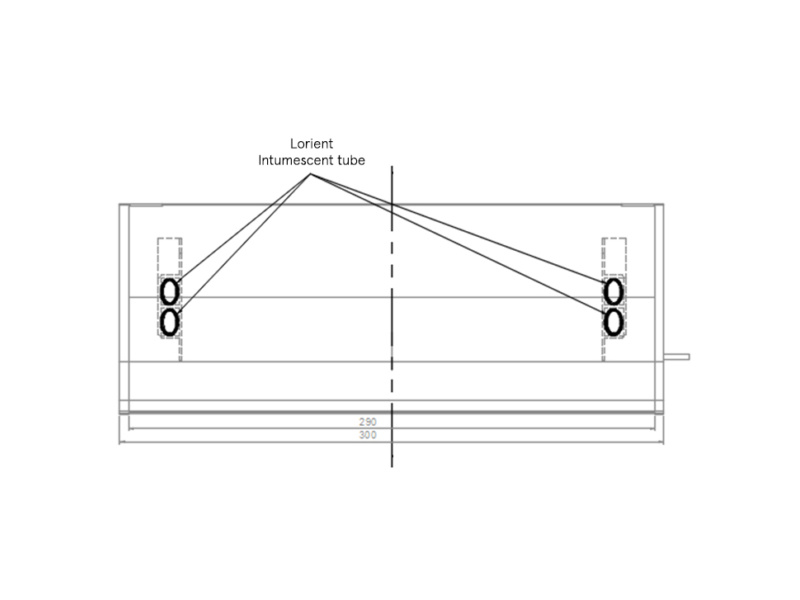

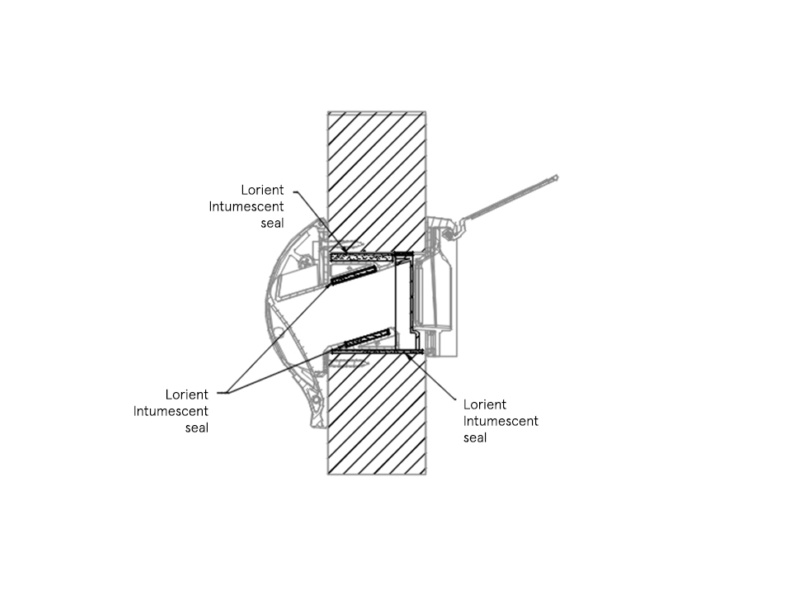

SEAL MATERIAL Intumescent lining

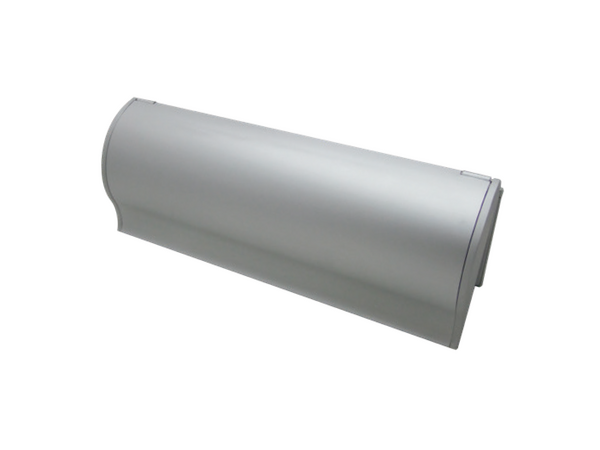

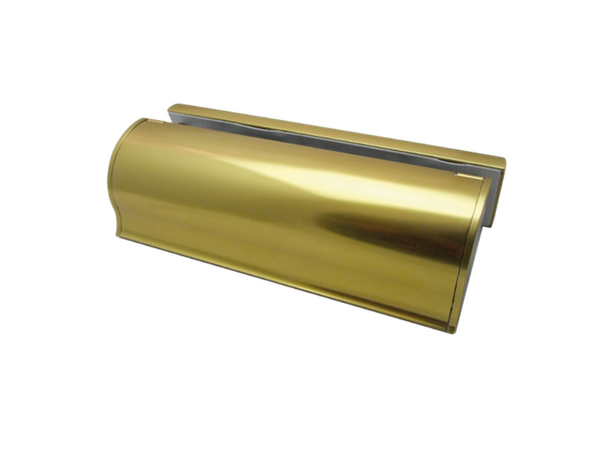

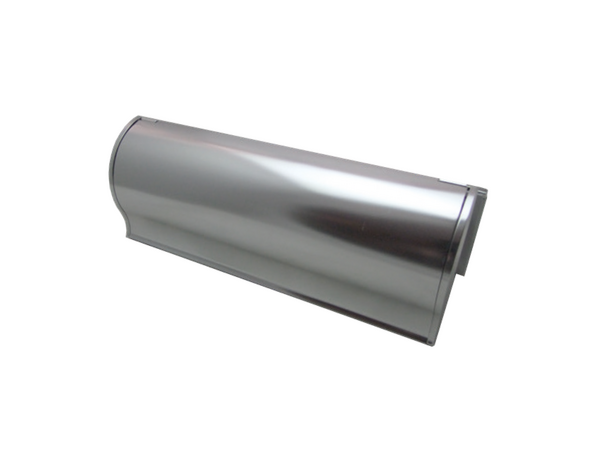

FINISHES Gold anodised aluminium. Silver anodised aluminium. Polished silver aluminium
TEST EVIDENCE Fire: BS 476-22:1987 in an FD30. Fire: BS 476-22:1987 in an FD60. Security: PAS 24:2016. Classified to TS 008:2015. Durability: 20,000 cycles
PERFORMANCE Can provide up to 60 minutes fire resistance
Certifire CF5688
BSI Kitemark KM 670828
