LAS9030 Fingerguard Seal
Cavity side

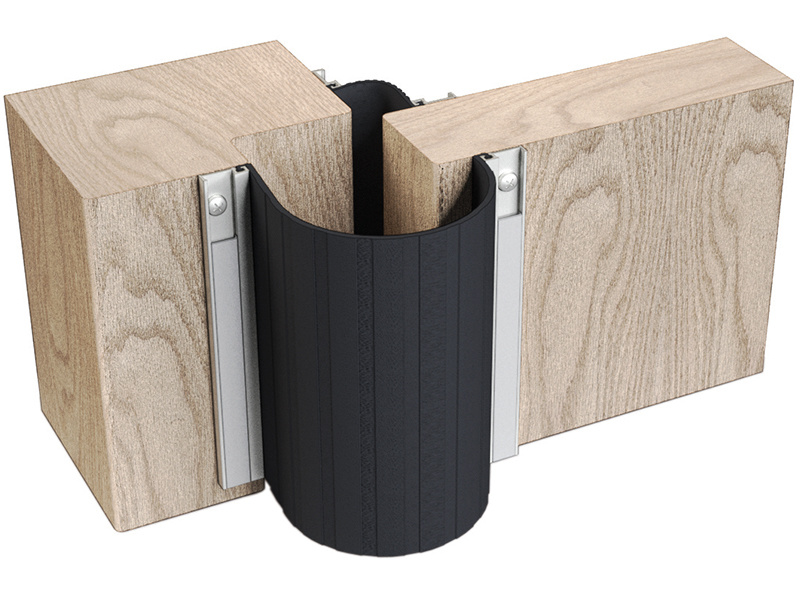

The LAS9030 and LAS9050 fingerguard seals form a complete safety system designed to prevent fingers from being trapped on both sides of hinged doors. Working together, the LAS9030 protects the hinge cavity side while the LAS9050 shields the hinge knuckle side, creating a continuous barrier that significantly reduces the risk of injury. This makes the system ideal for environments where young children or vulnerable individuals are present, such as schools, nurseries, healthcare facilities and public buildings. The combined system is
fire tested to BS EN 1634‑1:2014+A1:2018 (FD30 & FD60).
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Fire: BS EN 1634-1:2014+A1:2018. Tested to BS 8613:2017 (Finger protection devices for pedestrian doors - Type A, Class 2). Durability: 200,000 cycles |
| LOCATION | Jambs of hinged doors. It can be used on doors with an opening of 170° when used with LAS9050 si. 180° can be obtained when LAS9030 is used on its own |
| SEAL MATERIAL | Black EPDM rubber |
| Standard finish | Silver anodised aluminium with grey cover strip and black gasket |
| STANDARD LENGTHS | 1m + 2.1m |
