LAS7004 si Perimeter Seal
Medium Duty
Slimline, medium duty perimeter seal designed for timber doors with plain or rebated meeting stiles and where a centre latch is required. The leg of this seal can be cut out to accommodate the latch plate. Easily installed without removing the door.
Finish
System specification
| Property | |
|---|---|
| LOCATION | Meeting stiles of single and double swing doors. Sliding and revolving doors |

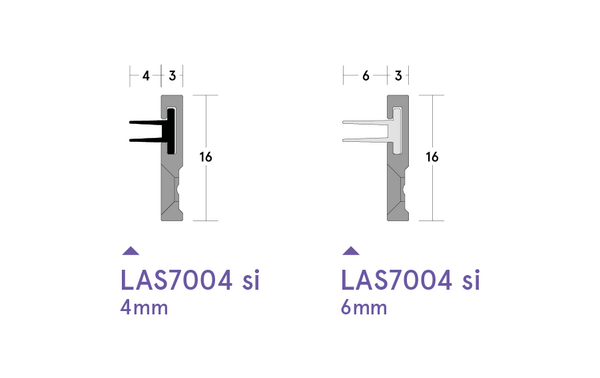

| SEAL MATERIAL | Choose from: 4mm projection twin elastomeric fins. 6mm projection twin elastomeric fins |
| Standard finish | Silver anodised aluminium with grey twin seal insert |
| Non-standard finish | Bronze anodised aluminium with black twin seal insert and other powder-coated colour finishes are subject to non-standard charges and additional lead times |
| STANDARD LENGTHS | 1m and 2.1m. Other lengths to special order. |
| TEST EVIDENCE: ACOUSTIC | Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 34dB). |
| CERTIFICATION | |
| UL | R27972 |
