LAS7001 si Perimeter seal
Medium Duty

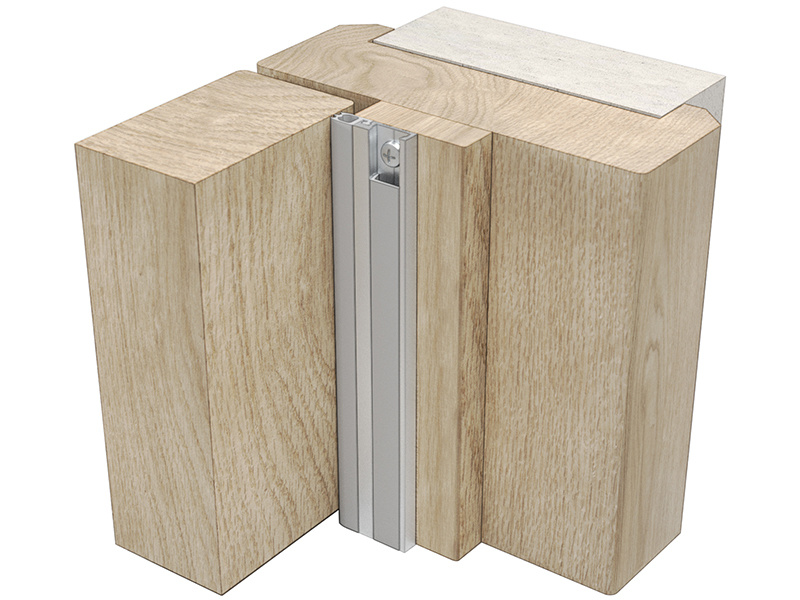

A slimline, aluminium perimeter seal featuring a silicone gasket ideal for acoustic + smoke containment. Designed to be fitted to existing door stops. A neat cover plate conceals fixing screws. Easily installed without removing the door.
Finish
![](/imager/productimages/Supporting-images/Isometrics/1488/LAS7001-Isometric_5472332afa344033d2bf9e7b6b9d883e.jpg)

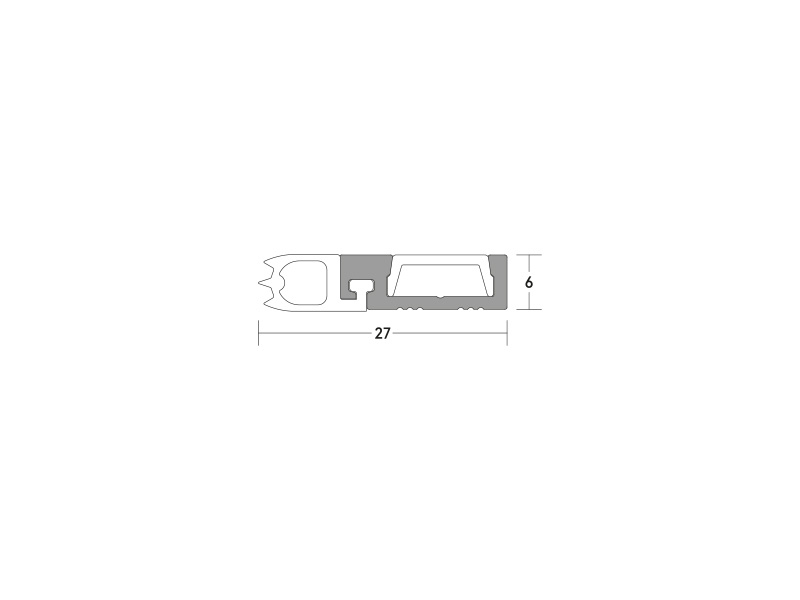

![](/imager/productimages/Supporting-images/Cross-sections/2164/LAS7001-cross-section_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Isometrics/1488/LAS7001-Isometric_905a32f077cde75e59ae4f0bd185c8e7.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/2164/LAS7001-cross-section_905a32f077cde75e59ae4f0bd185c8e7.jpg)
System specification
Property | |
---|---|
TEST EVIDENCE | Smoke: BS EN 1634-3:2004 at ambient and medium temperature; effective smoke seal up to 200°C. Acoustic: BS EN ISO 10140-2: 2010 si (up to Rw 33dB). Durability: 100,000 cycles |
PERFORMANCE | Meets smoke requirement: BS 9999: 2017. Suitable for use of fire rated steel doorsets |
LOCATION | Head + jambs of single swing doors |
SEAL MATERIAL | Flexible silicone rubber |

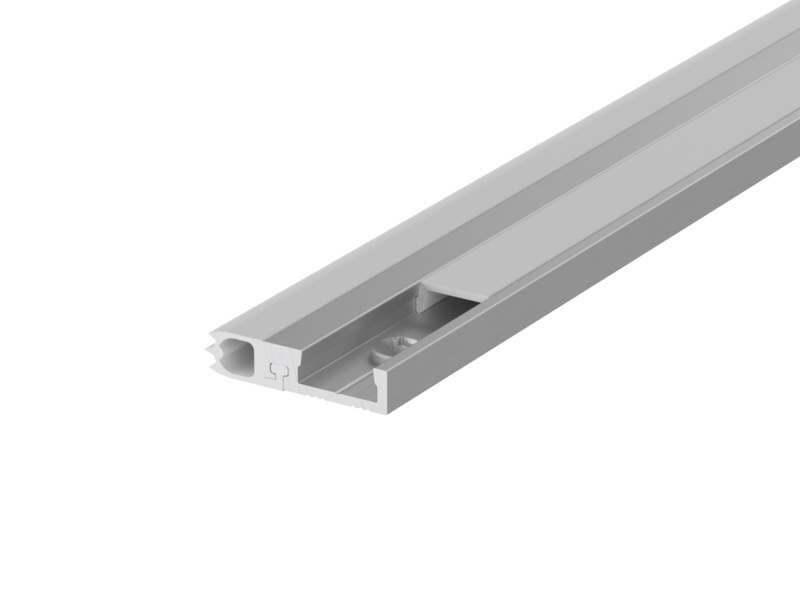

Standard finish | Silver anodised aluminium with grey cover strip and grey silicone rubber gasket |

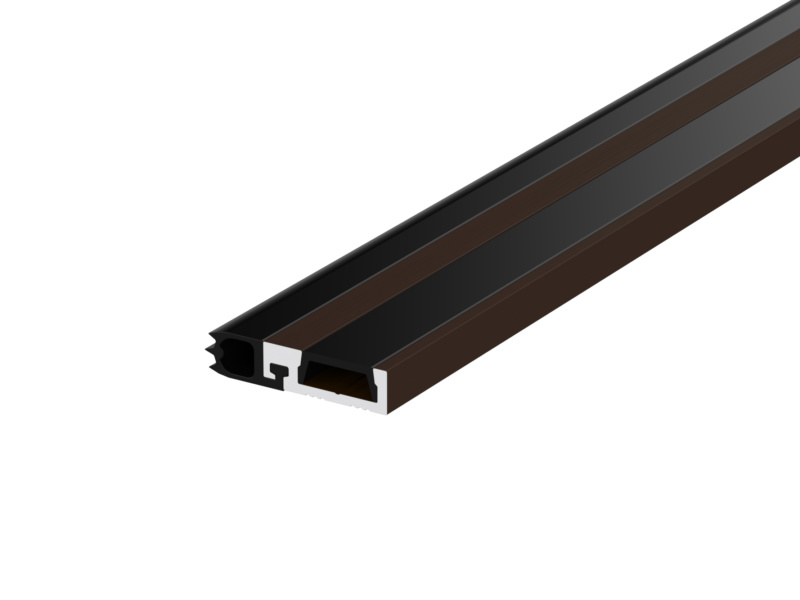

Non-standard finish | Bronze anodised aluminium with black cover strip and black silicone rubber gasket, and other powder coated colour finishes are subject to non-standard charges and additional lead times |
STANDARD LENGTHS | 1m + 2.1m. Single doorset pack consisting of 1 x 1m and 2 x 2.1m. Other lengths to special order |
CERTIFICATION | |
Certifire | CF5179 |
