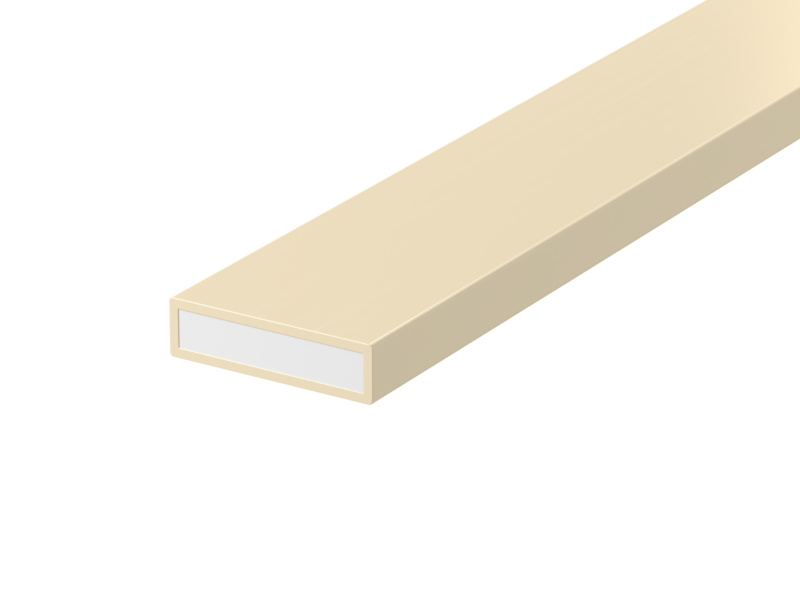

Fire Seal / Intumescent Strip

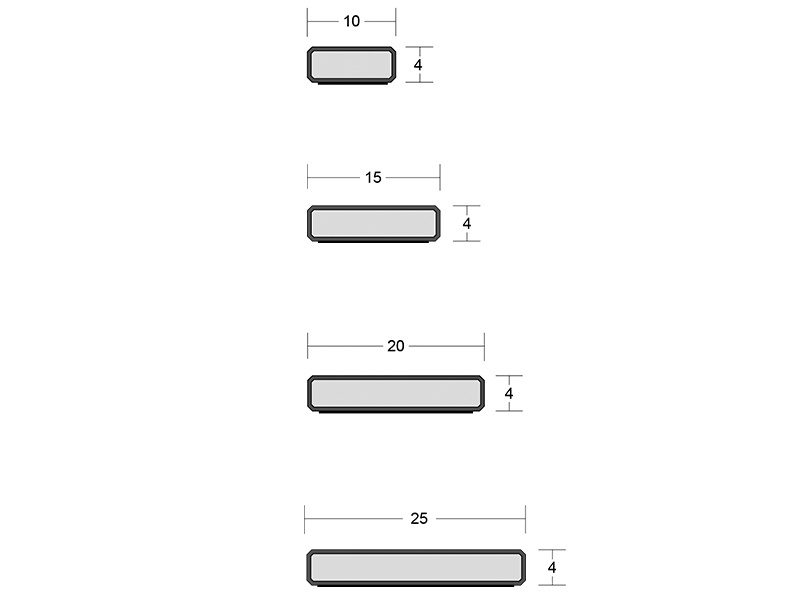

LP1004, LP1504, LP2004

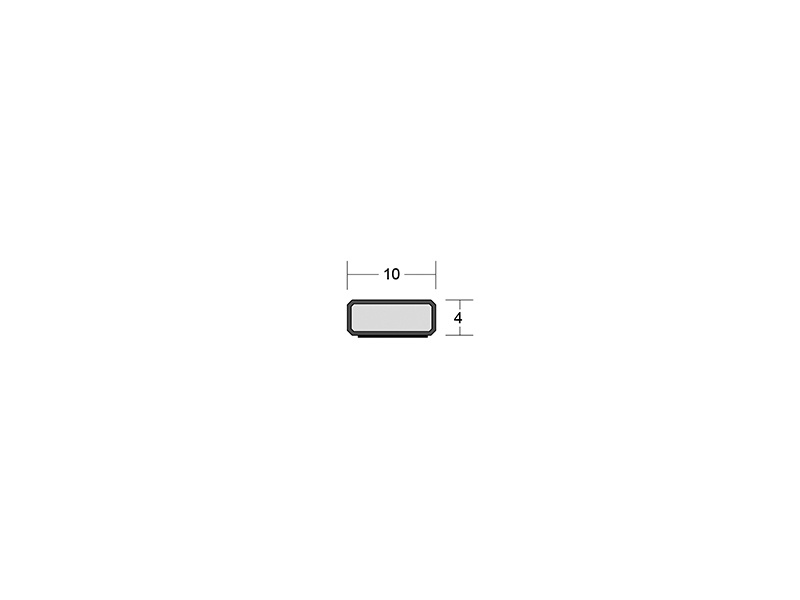

  • LP1004
  • LP1504
  • LP2004

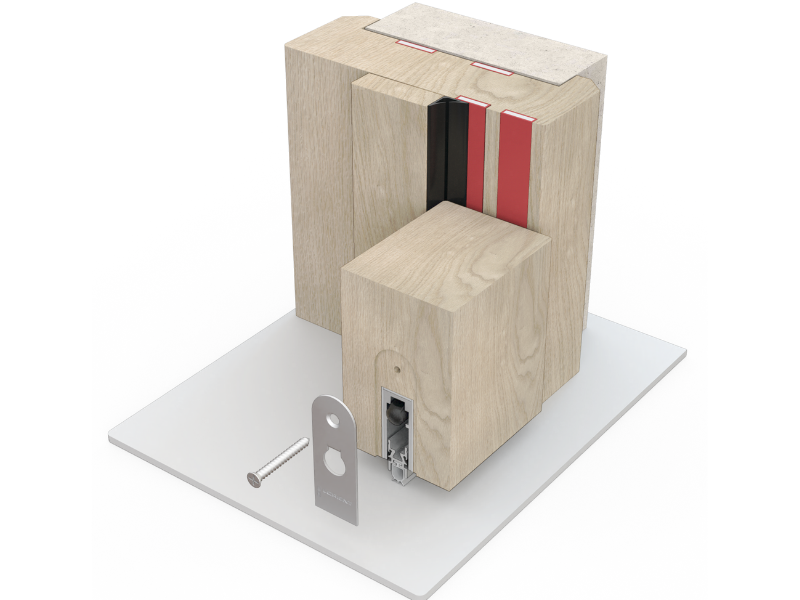

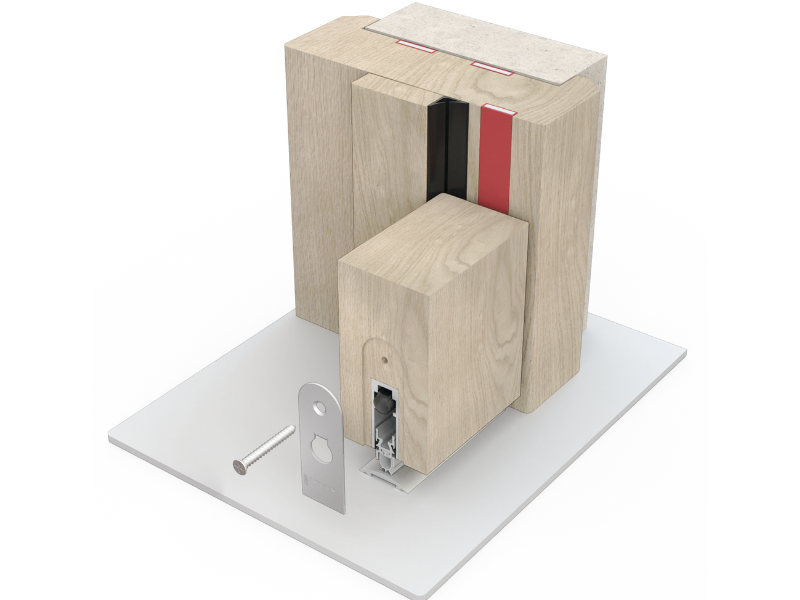

Our intumescent strips for fire doors offer fire protection where no smoke sealing is required. Combine a fire seal with a Batwing® seal for additional acoustic + smoke containment. Available in a choice of sizes to cover 30 + 60 minute applications.

Note: The limitations of the printing process mean the colours and finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.

  • Request sample
Colour

System specification

Property
LocationSingle + double leaf doors
Min/max gap size3mm/4mm
Seal materialPVC encased sodium silicate

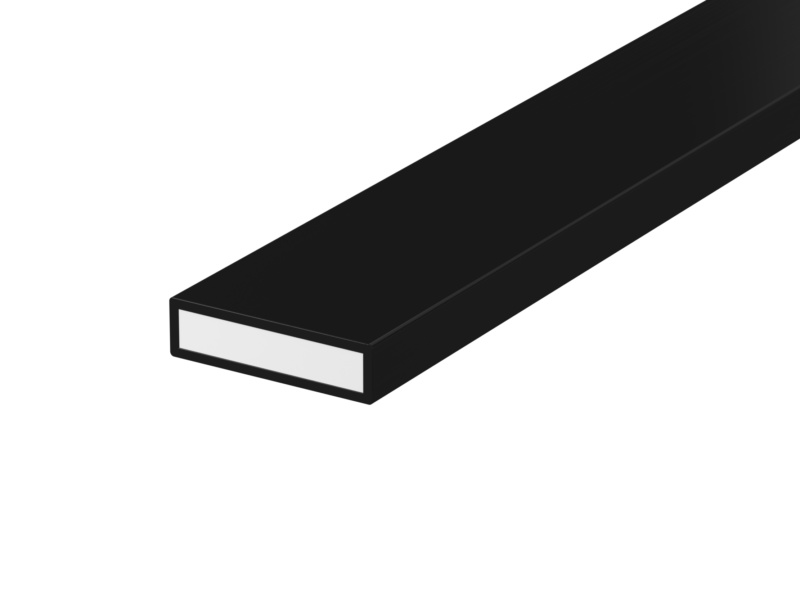

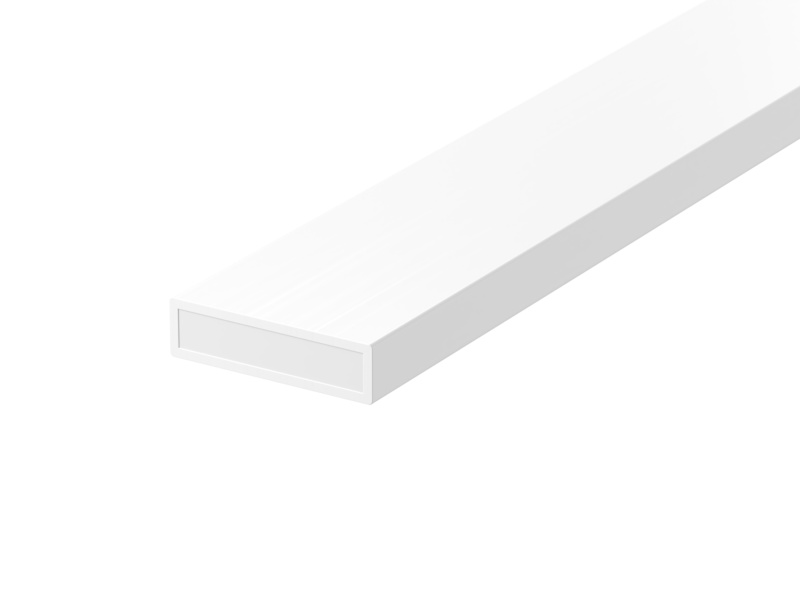

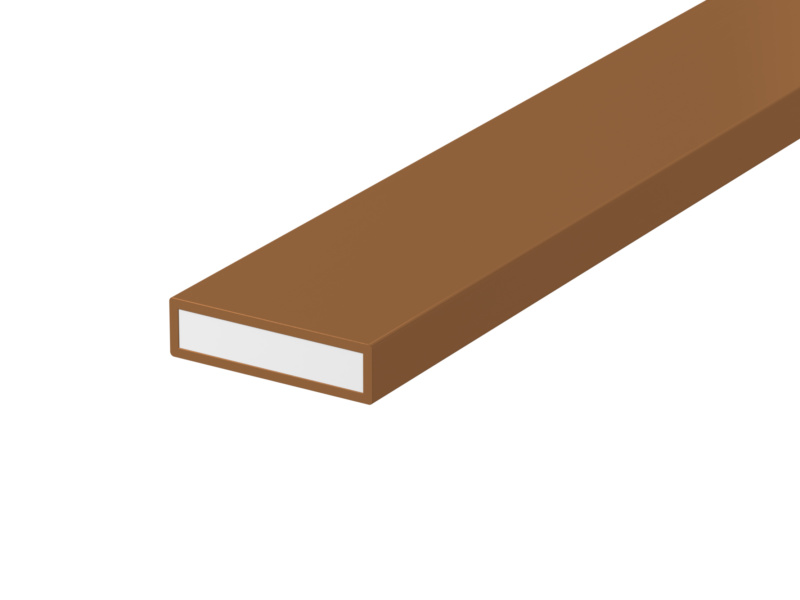

Standard coloursWhite, black, dark brown, light brown + grey

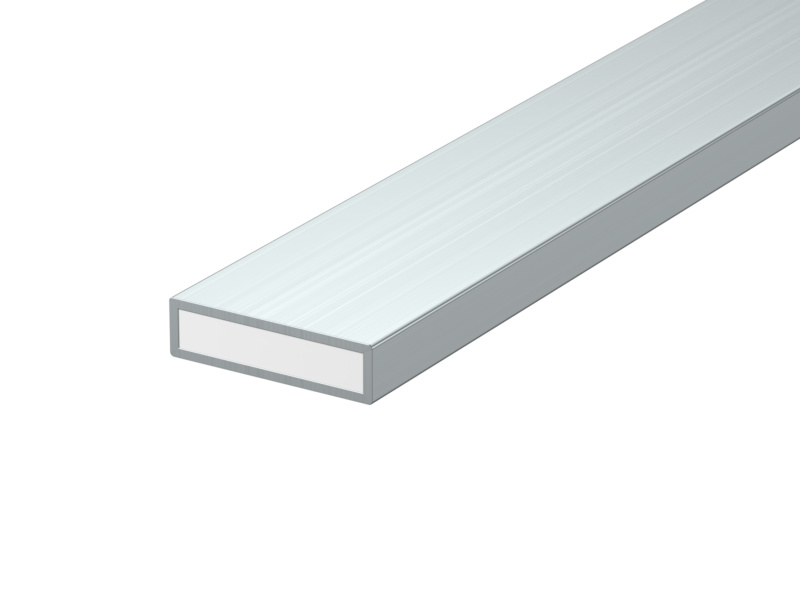

Non-standard finishesCream, red, silver + woodgrains are subject to MOQs
Standard lengths1m + 2.1m. Other lengths to special order
Fixing Heavy duty self-adhesive backing tape
Test evidenceFire: BS EN 1634-1: 2008 & BS 476-22: 1987. Durability: 100,000 cycles
CERTIFICATION
Certifire CF330 + CF341
BBA 92/2841
IFC FRPP454
