AS Fire, Smoke + Acosutic Door Seal

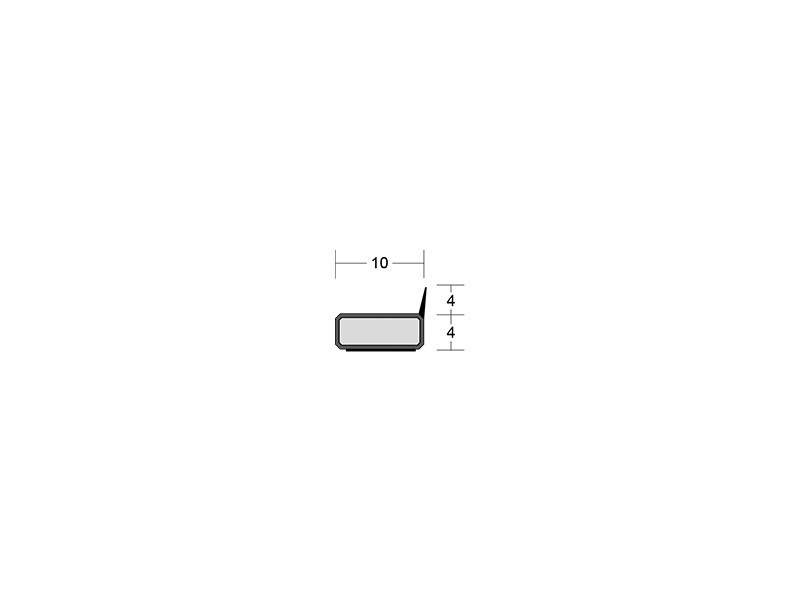

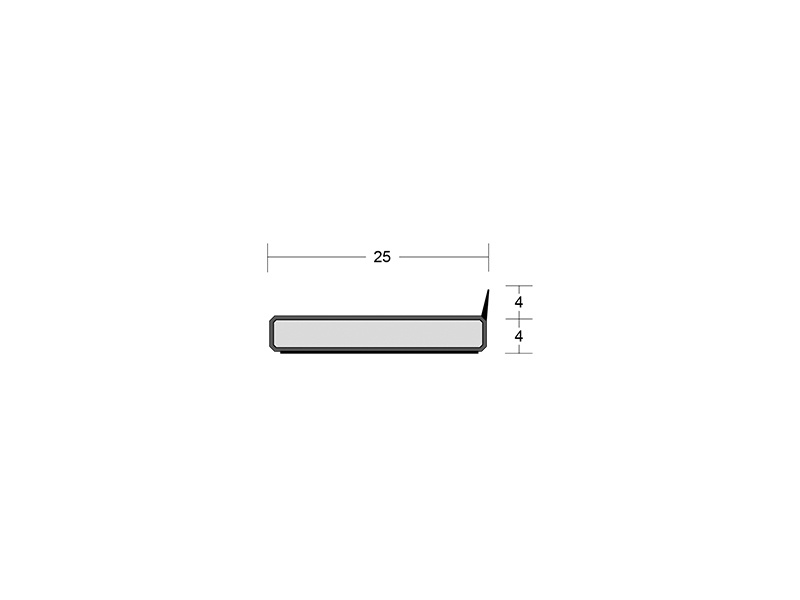

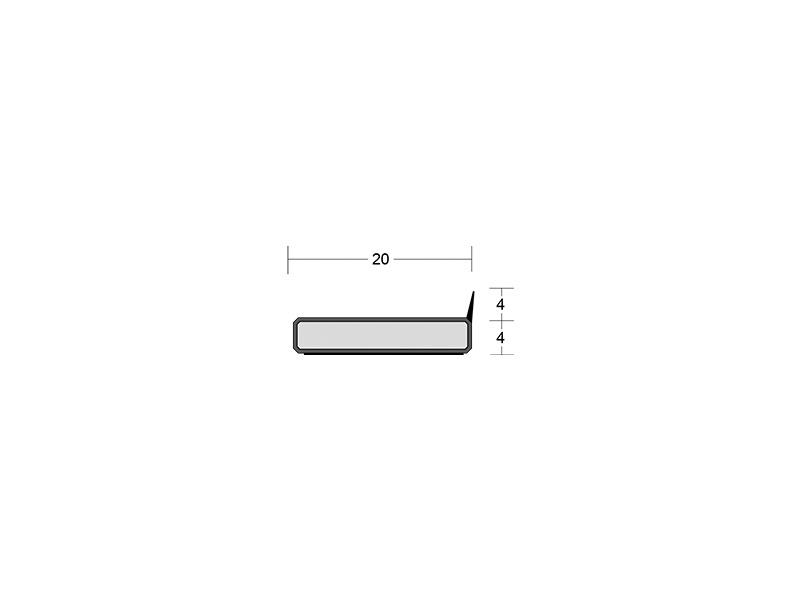

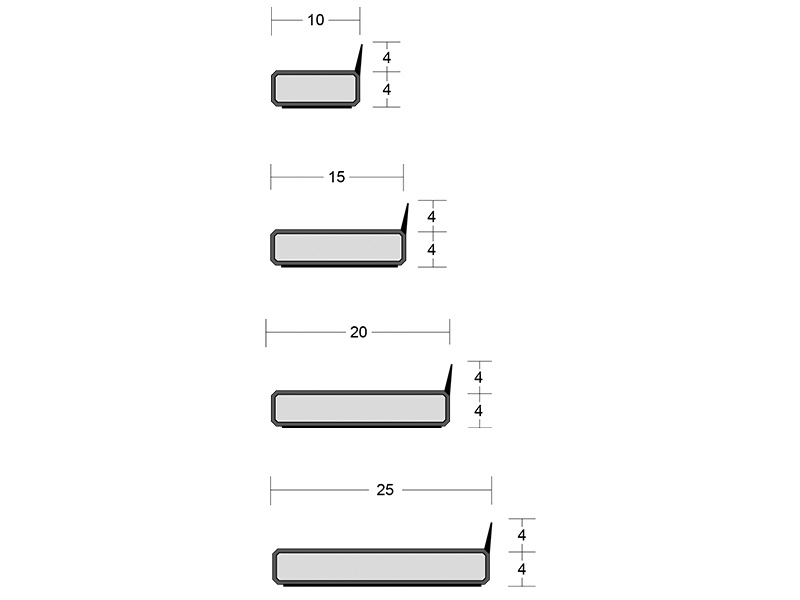

LP1004AS, LP1504AS, LP2004AS +LP2504AS

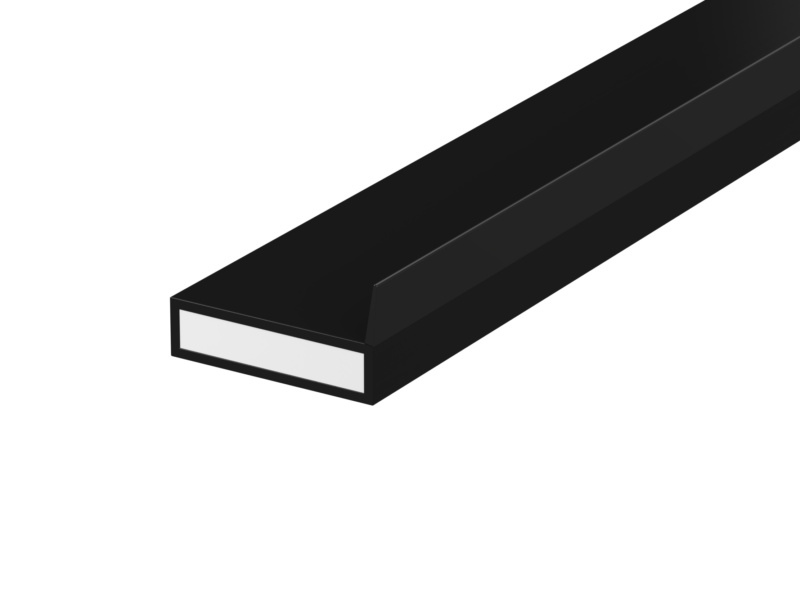

Our AS door seal with elastomeric fin offers fire, smoke + acoustic protection, with the added benefit of thermal containment. Available in a choice of sizes to cover 30 + 60 minute applications.
Note: The limitations of the printing process mean the colours and finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.














System specification
Property | |
---|---|

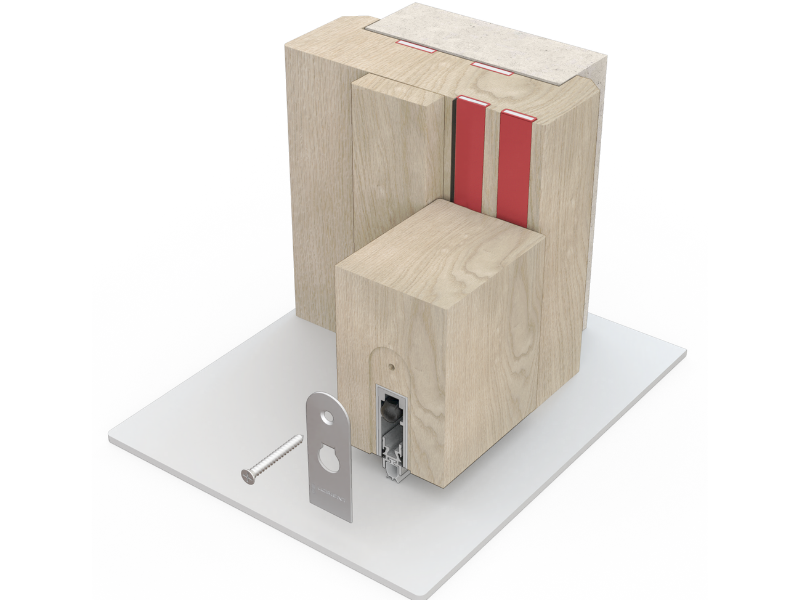

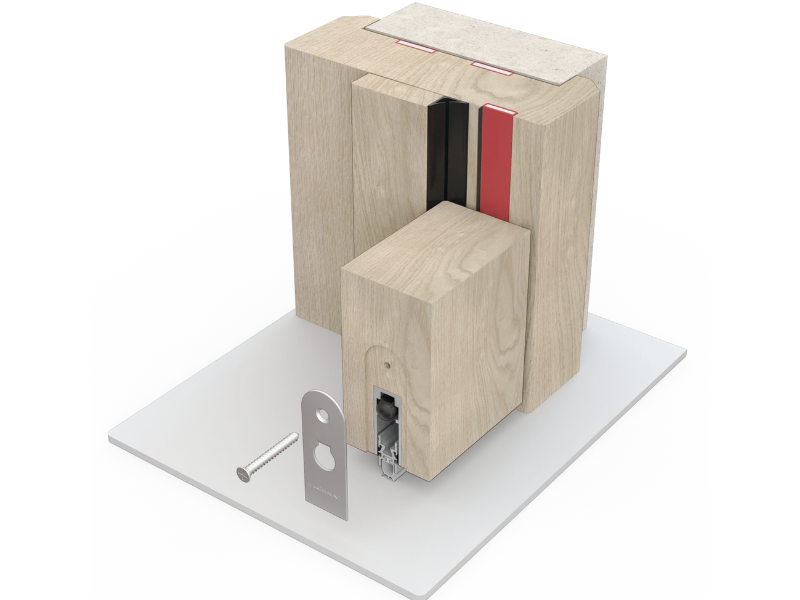

LOCATION | Single + double leaf doors |
MIN/MAX GAP SIZES | 3mm/4mm |
SEAL MATERIAL | PVC encased sodium silicate + flexible elastomeric fins |

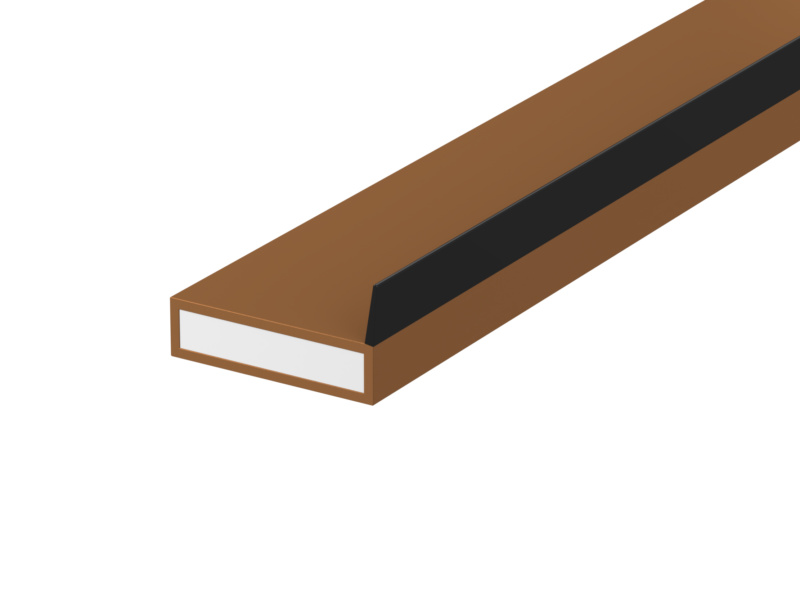

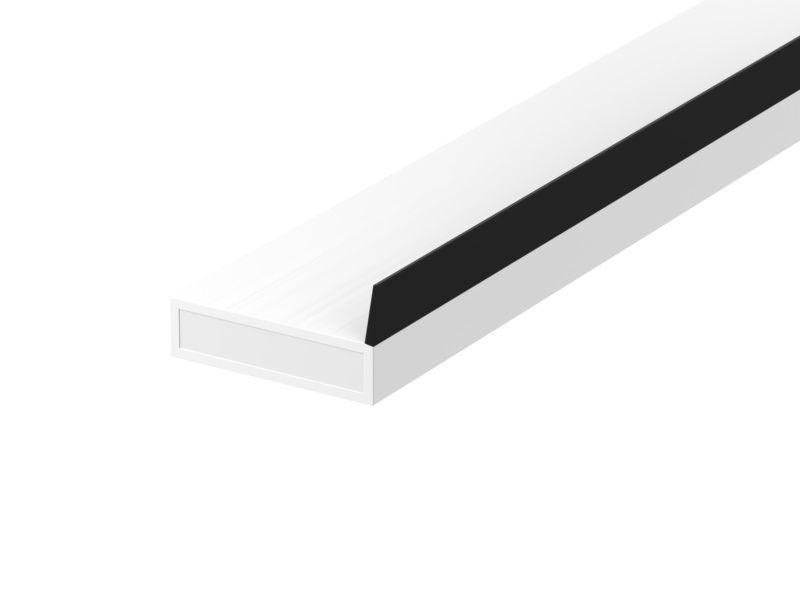

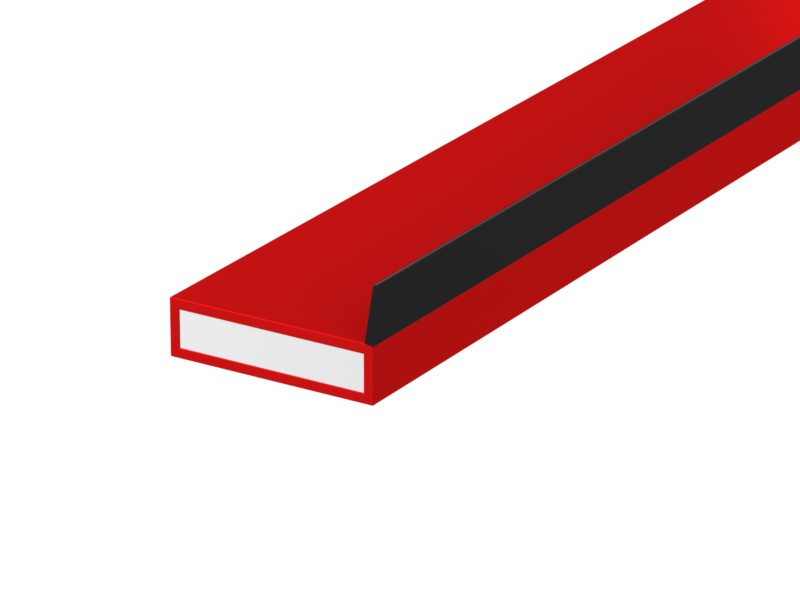

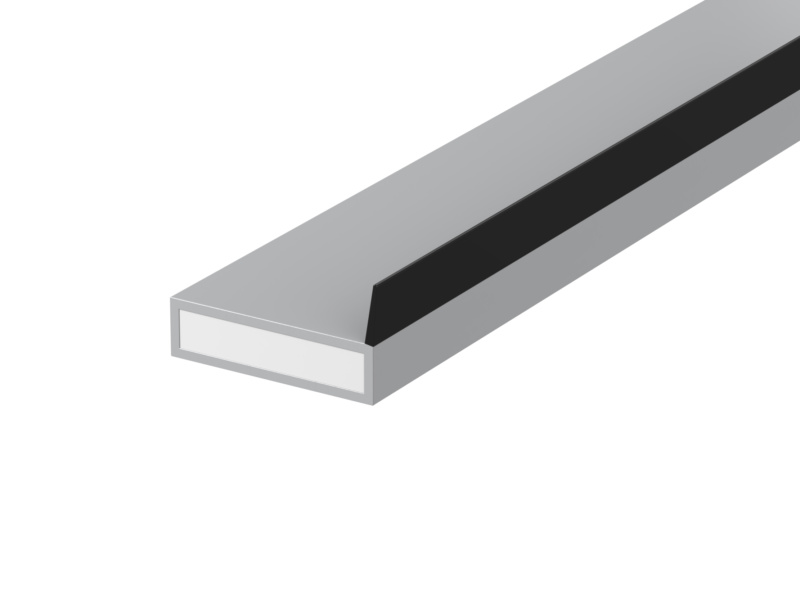

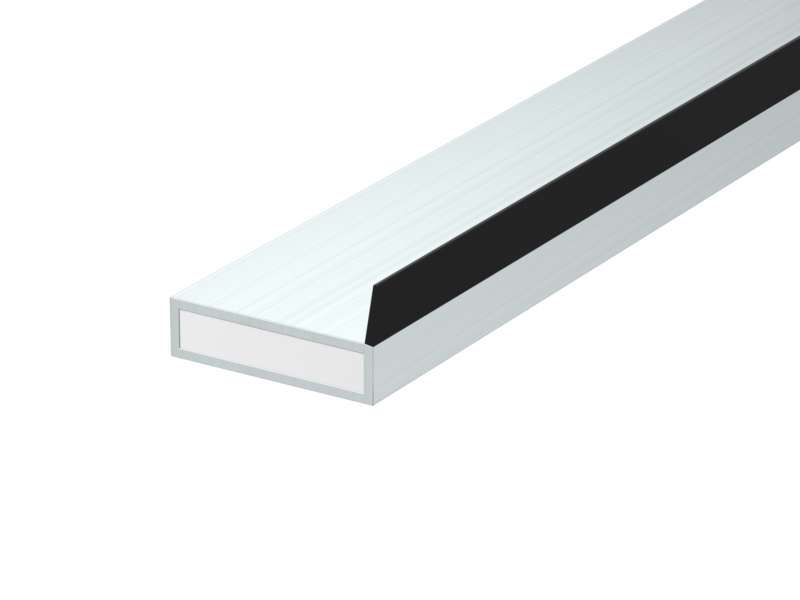

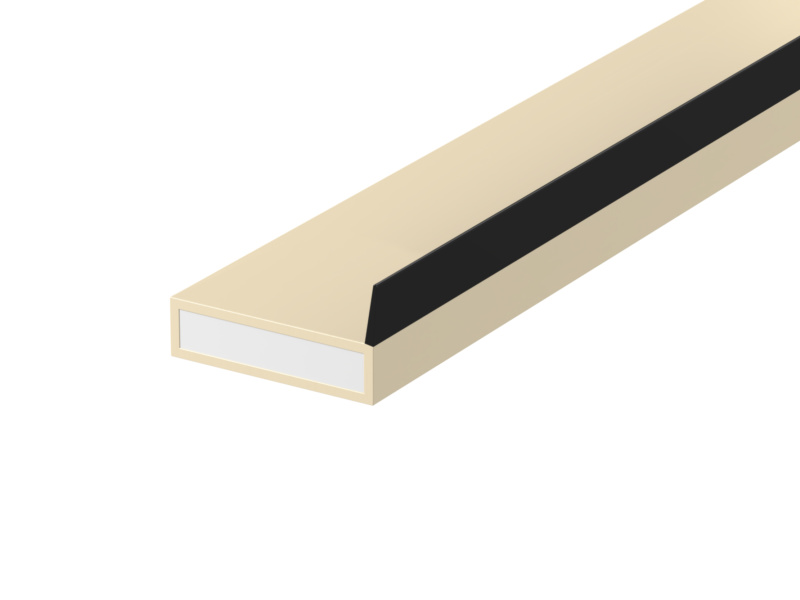

FINISHES | Available in a range of standard colours. Fins are black, white fins are also available to special order |
STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order |
TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010. Smoke: BS 476-31.1: 1983. Fire: BS EN 1634-1:2008 & BS 476-22:1987. Durability: 1 million cycles |
Performance | Meets smoke requirement: BS 9999: 2017 |
CERTIFICATION | |
Certifire | CF330 + CF341 |
BBA | 92/2841 |
IFC | FRPP454 |
