AAS7506 Meeting Stile Seal
AURA®

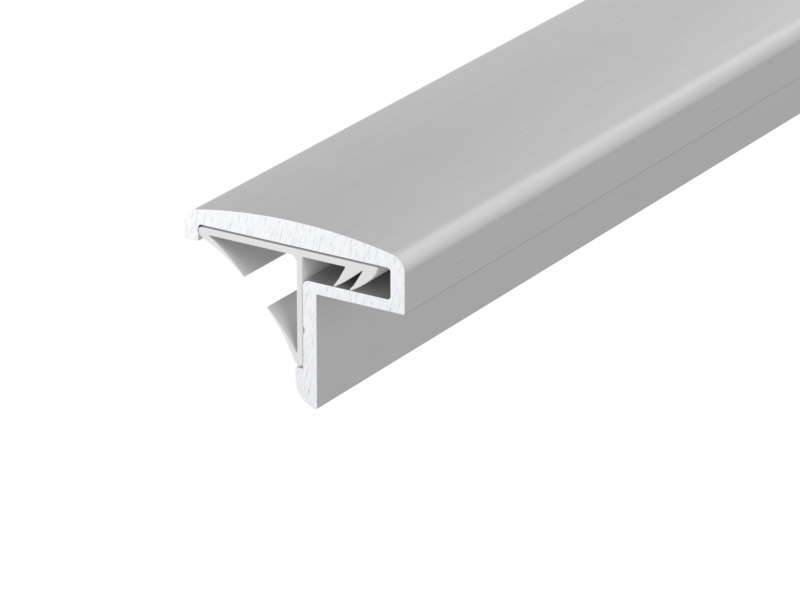

A robust seal designed for use on plain or rebated meeting stiles. With proven acoustic performance it is also suitable for smoke, light, + draught containment. The leg can be cut out to make way for locks + latches.
Finish
System specification
| Property | |
|---|---|

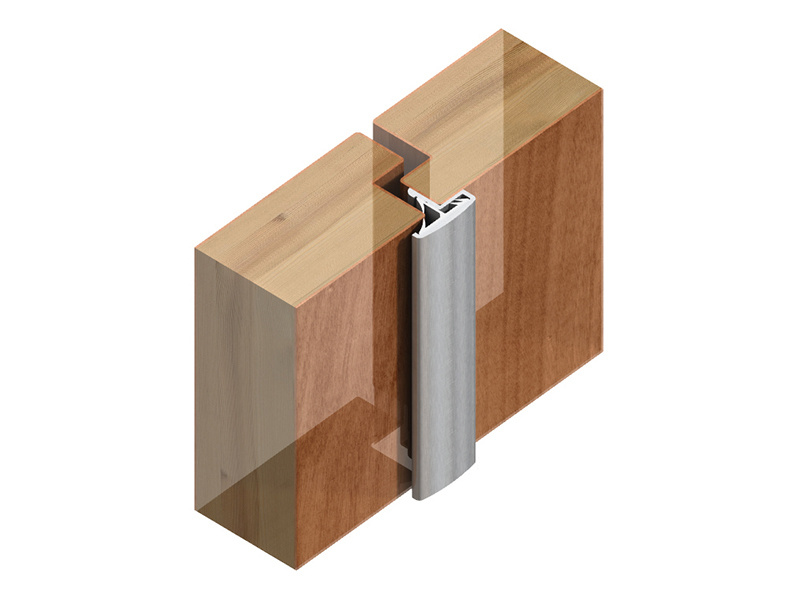

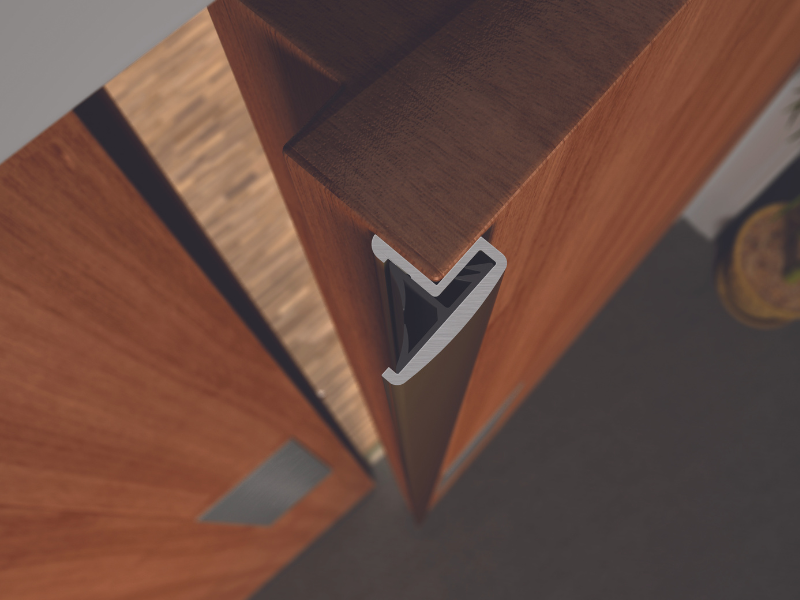

| LOCATION | Meeting stiles of single swing doors. Double doors – where only one door leaf is in use |
| SEAL MATERIAL | Co-extruded elastomeric with flexible curved fins |
| FINISHES | Silver or bronze anodised aluminium. Black + light bronze anodised aluminium available (non-standard - charges + lead times apply). Black, white, dark brown, light brown, grey, clear + cream Batwing® inserts available |
| STANDARD LENGTHS | 1m + 2.1m |
| TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010. Smoke Leakage: BS EN 1634-3: 2004 & BS 476: Pt.31.1: 1983. Durability: 1 million cycles on full-size door assemblies |
| CERTIFICATION | |
| Certifire | CF5179 |
| UL | R27972 |
