AAS4503 Threshold Plate
AURA®

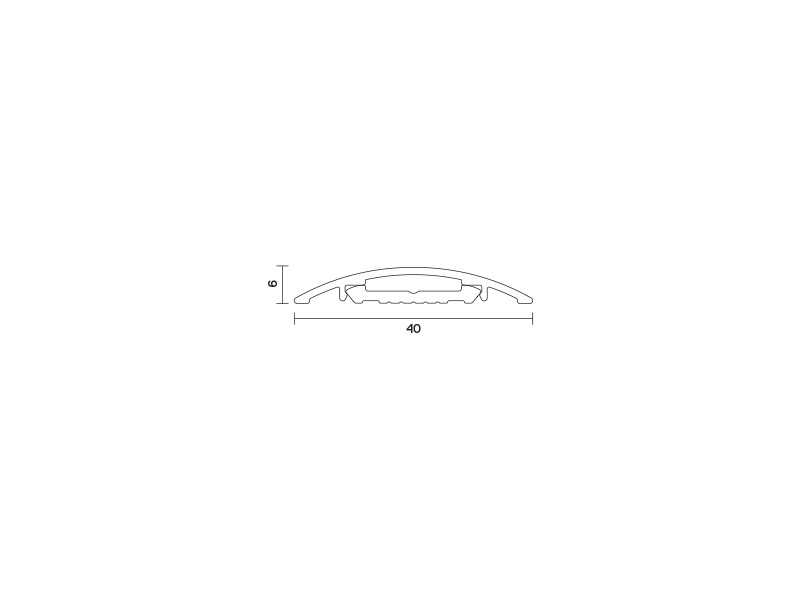

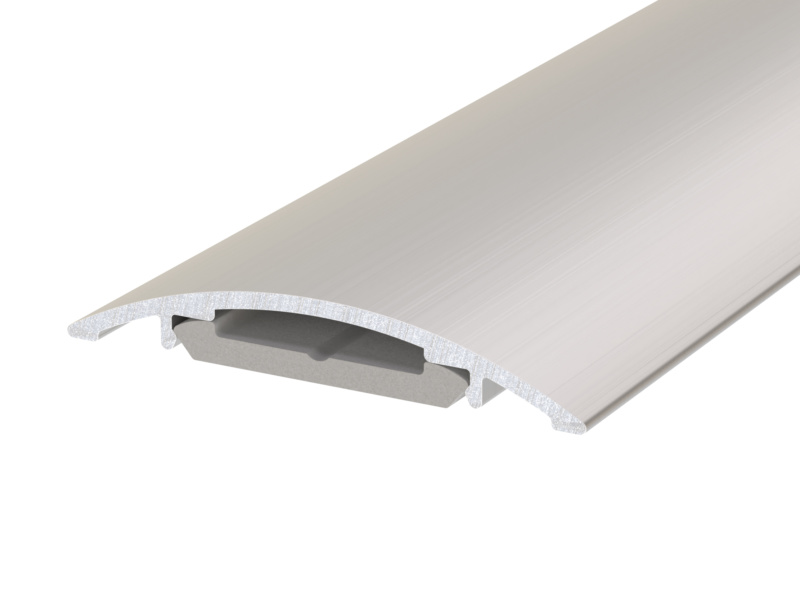

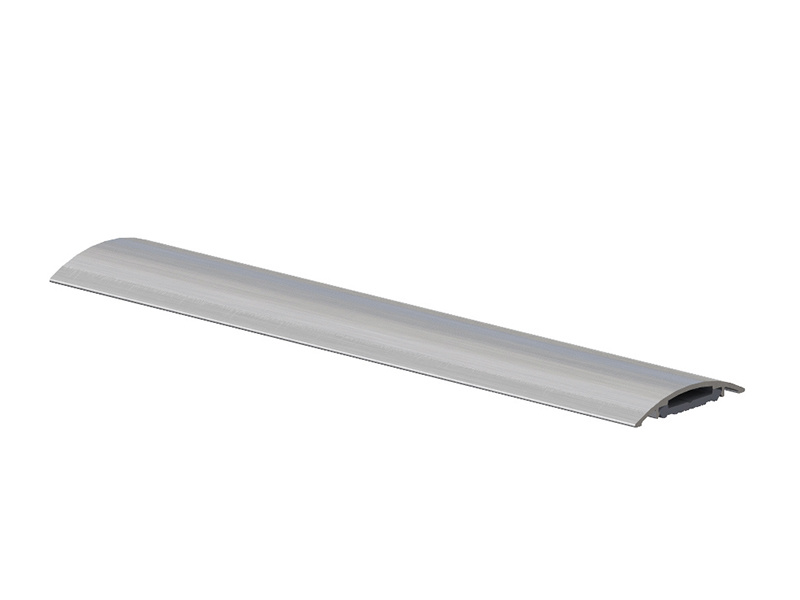

A seamless 40mm wide aluminium threshold plate. Fixings are concealed with a snap-on cover plate for premium aesthetics. Combine with a drop seal or door bottom seal to prevent rain, draught + smoke penetration.
Finish
System specification
| Property | |
|---|---|
| LOCATION | Single + double swing doors |
| SEAL MATERIAL | Aluminium cover. Heavy duty polymer fixing plate |
| Standard finish | Silver anodised aluminium as standard |

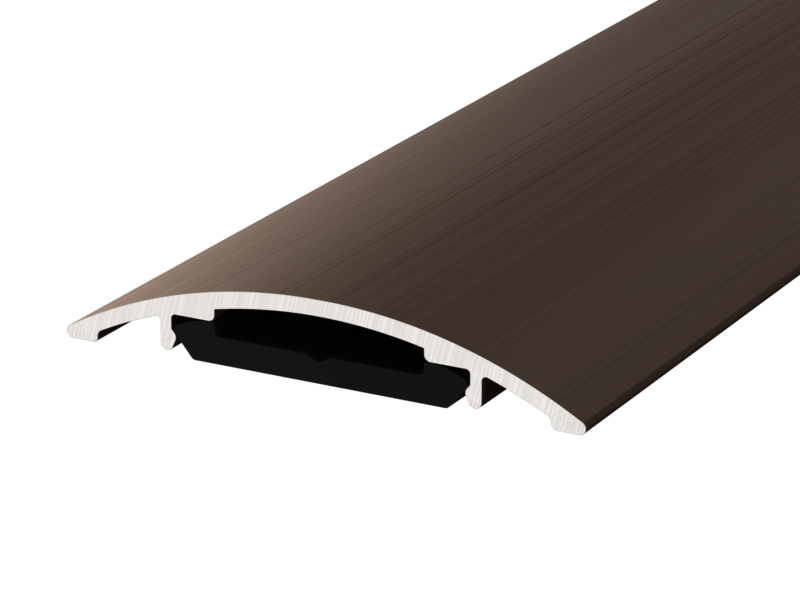

| Non-standard finish | Bronze anodised aluminium, decorative finishes (non-standard - charges + lead times apply) |
| STANDARD LENGTHS | 1m + 2.1m. Other lengths available for special order |
| CERTIFICATION | |
| UL | R27972 |
