AAS7501 Perimeter Seal
AURA®

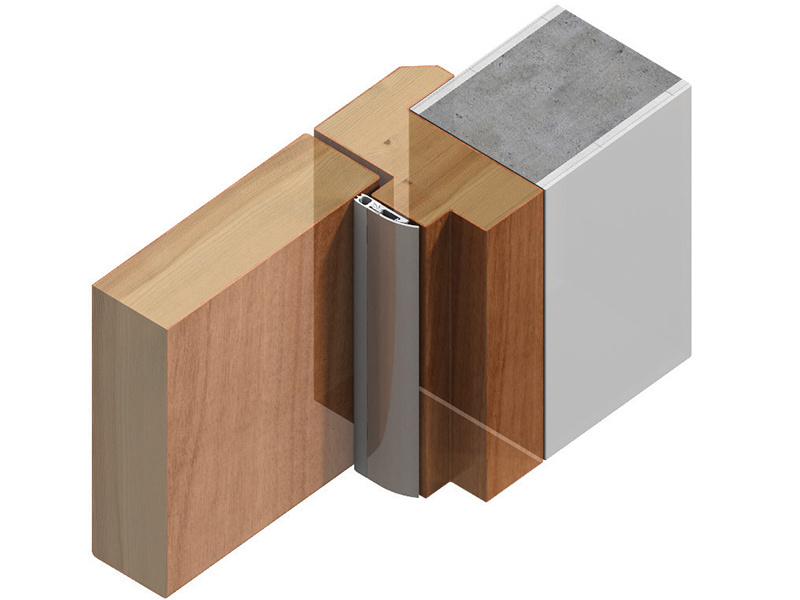

A slimline, perimeter seal designed with a seamless curve for enhanced aesthetics, with proven performance for acoustic + smoke containment when installed around the head + jambs of doors. The decorative snap-on cover plate completely conceals fixings + is available in a range of finishes.
Finish
System specification
Property | |
---|---|
TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010. Smoke: BS EN 1634-3: 2004 & BS 476-31.1: 1983 at ambient temperature. Durability 1 million cycles on full-size door assemblies |
LOCATION | Head + jambs of single swing doors |
SEAL MATERIAL | Silicone |
Standard finish | Silver anodised aluminium with Silver silicone gasket as standard |
Non-standard finish | Bronze anodised aluminium with Black silicone gasket are subject to non-standard charges and additional lead times |
STANDARD LENGTHS | 1m + 2.1m. Doorset packs 1x1m + 2x2.1m. Other lengths available for special order |
CERTIFICATION | |
Certifire | CF5179 |
