AAS3501 Door Bottom Seal

AURA®

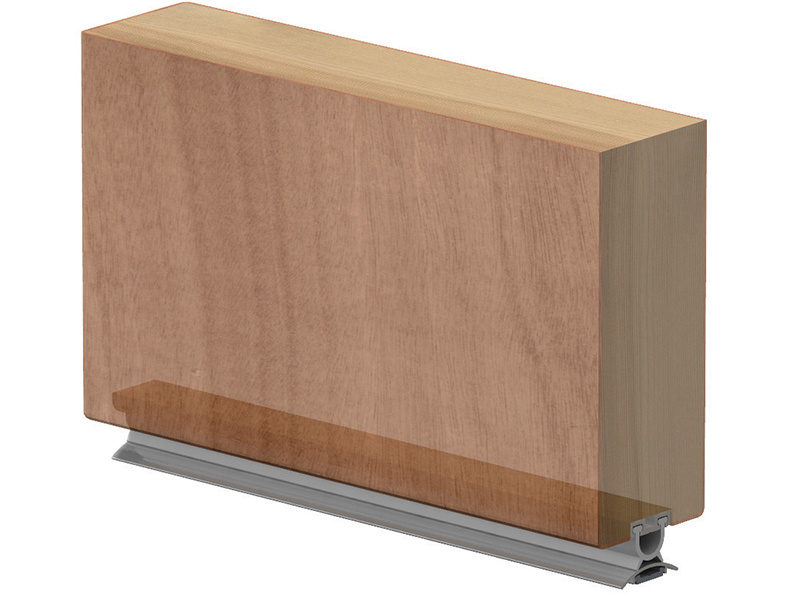

This door bottom seal features unique slide-in gaskets can be cleverly reversed (blades in/out) for maximum flexibility. Suitable for single + double swing doors, as well as meeting stiles. The AAS3501 can be surface mounted or concealed in a rebated groove at the bottom of the door leaf.

Finish

System specification

Property
LOCATIONRebated or surface mounted at the bottom of single, double swing doors + on one leaf at the meeting stile of double swing doors
Min/max gap size8mm/10mm
SEAL MATERIALSilicone
FINISHESSilver anodised aluminium with silver silicone gasket. Bronze anodised aluminium with black silicone gasket
STANDARD LENGTHS1m + 2.1m. Other lengths available for special order
ACCREDITATION
ULR27972
