AAS4508 Threshold Plate


A stylish stepped threshold plate ideal for acoustics. Acoustic containment is enhanced by the silicone gasket; + acoustic bedding pads reduce vibration + provide cushioning on uneven surfaces.


System specification

Test evidence Acoustic: BS EN ISO 10140-2: 2010

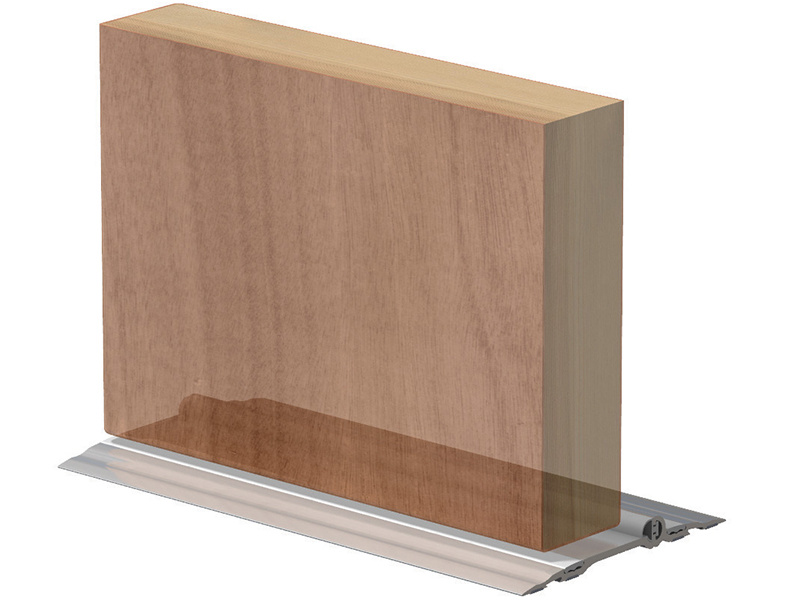

LOCATIONSingle swing doors
SEAL MATERIALAluminium with two flexible tread strips

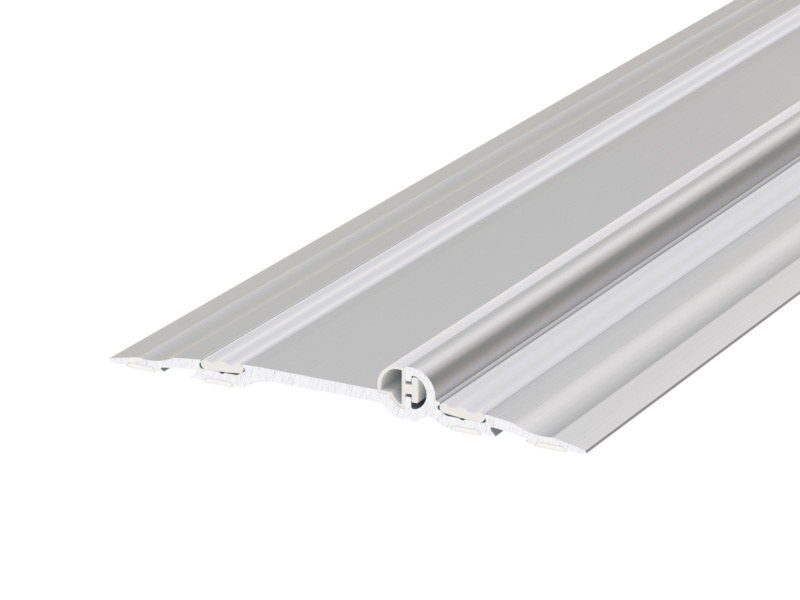

Standard finish Silver anodised aluminium with silver tread strips as standard

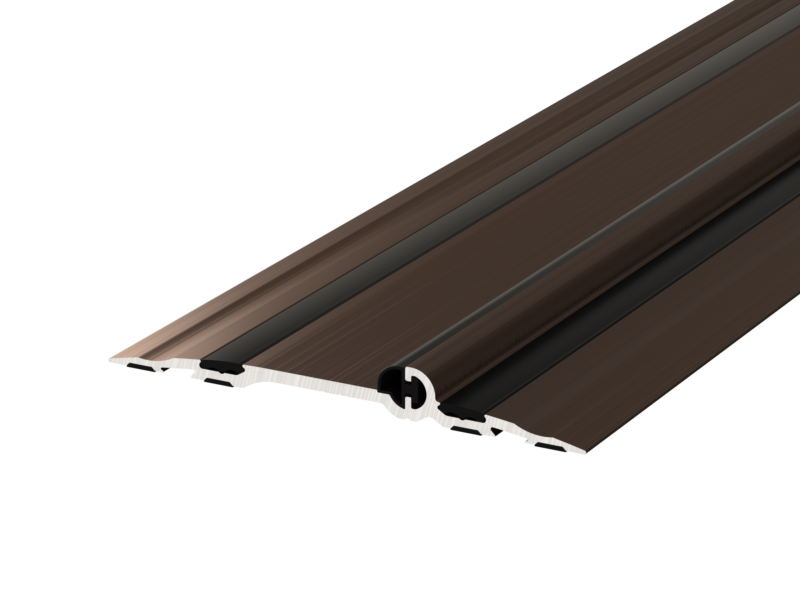

Non-standard finish Bronze anodised aluminium with black tread strips subject to non-standard charges and additional lead times. Decorative finishes for threshold plate and different colour tread strips available (non-standard charges and additional lead times)
STANDARD LENGTHS1m + 2.1m. Other lengths available for special order. Minimum order quantity 1000m.
