System-90 PLUS Glazing System

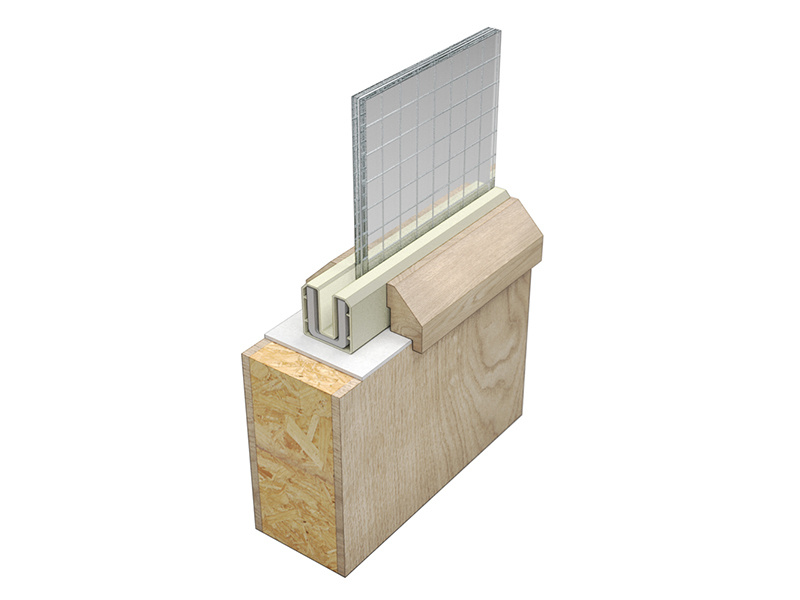

U Shaped Channel + Liner
System-90 PLUS is designed for 60 minute fire resistant doors + screens. Comprises a U shaped PVC profile containing an intumescent core + liner. When using a suitable door + screen construction it provides 90 minute fire resistance. 120 minute fire resistance can only be attained when a suitable door construction is used.
System specification
| Property | |
|---|---|
| Application | FD60 fire doors + timber framed screens |
| Seal material | Sodium silicate intumescent within rigid PVC profile. Secondary sodium silicate intumescent material used as lining around the perimeter of the aperture |
| Glass thickness | Suitable for use only with 6mm Georgian wired glass, Pyran-S® or 5mm Firelite® |
| Standard lengths | 2.1m as standard. Other lengths available to special order |
| Finish | Black, white, light brown and dark brown as standard. Other colours available to special order. Minimum order quantities and extended lead times apply |
| Use with | Must be used with liner + beading to prevent erosion from under the system |
| Test evidence | Fire: BS 476-22:1987 |
| Performance | Provides 60 minutes fire resistance. For applications 90 minutes + above please contact our technical department |
| CERTIFICATION | |
| Certifire | CF185 |
