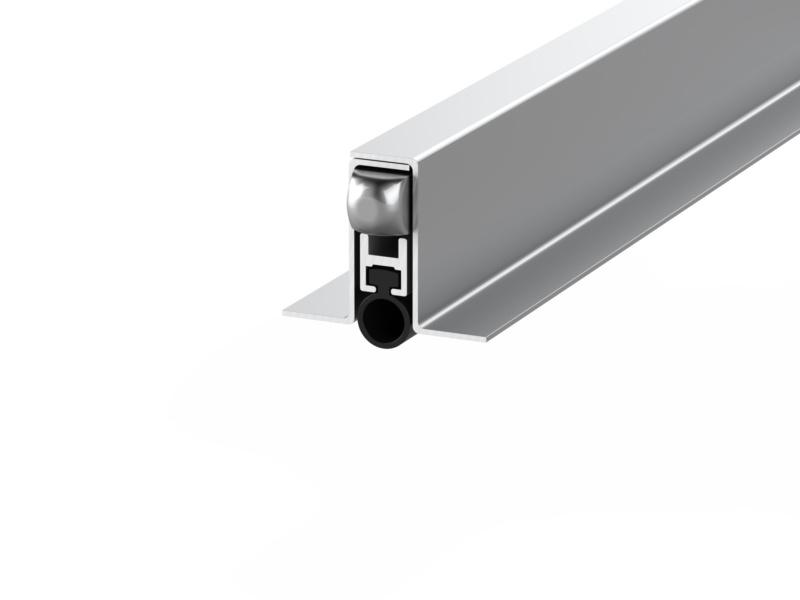

LAS8060 Drop Seal
Mortised
A grade 304 stainless steel, medium duty automatic drop seal. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection.
Finish
System specification
| Property | |
|---|---|
| Performance | Meets smoke requirement: BS 9999: 2017 |
| LOCATION | Single swing, single + double leaf doors. For use on both right + left handed doors |
| MIN/MAX GAP SIZES | 3mm/13mm |
| SEAL MATERIAL | Thermoplastic elastomer |
| FINISHES | Stainless steel with grey thermoplastic elastomer gasket |
| STANDARD LENGTHS | 725mm, 825mm, 925mm + 1025mm. Note: Each length can be reduced for an exact fit by up to 90mm |
| ADJUSTMENT | Self-levelling on uneven surfaces. Adjustment can be carried out independently of the fixing screws |
